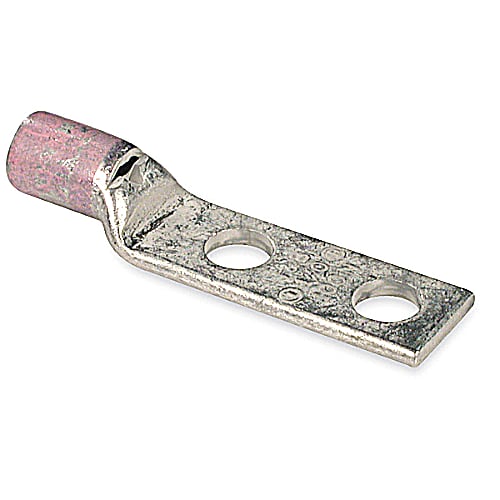

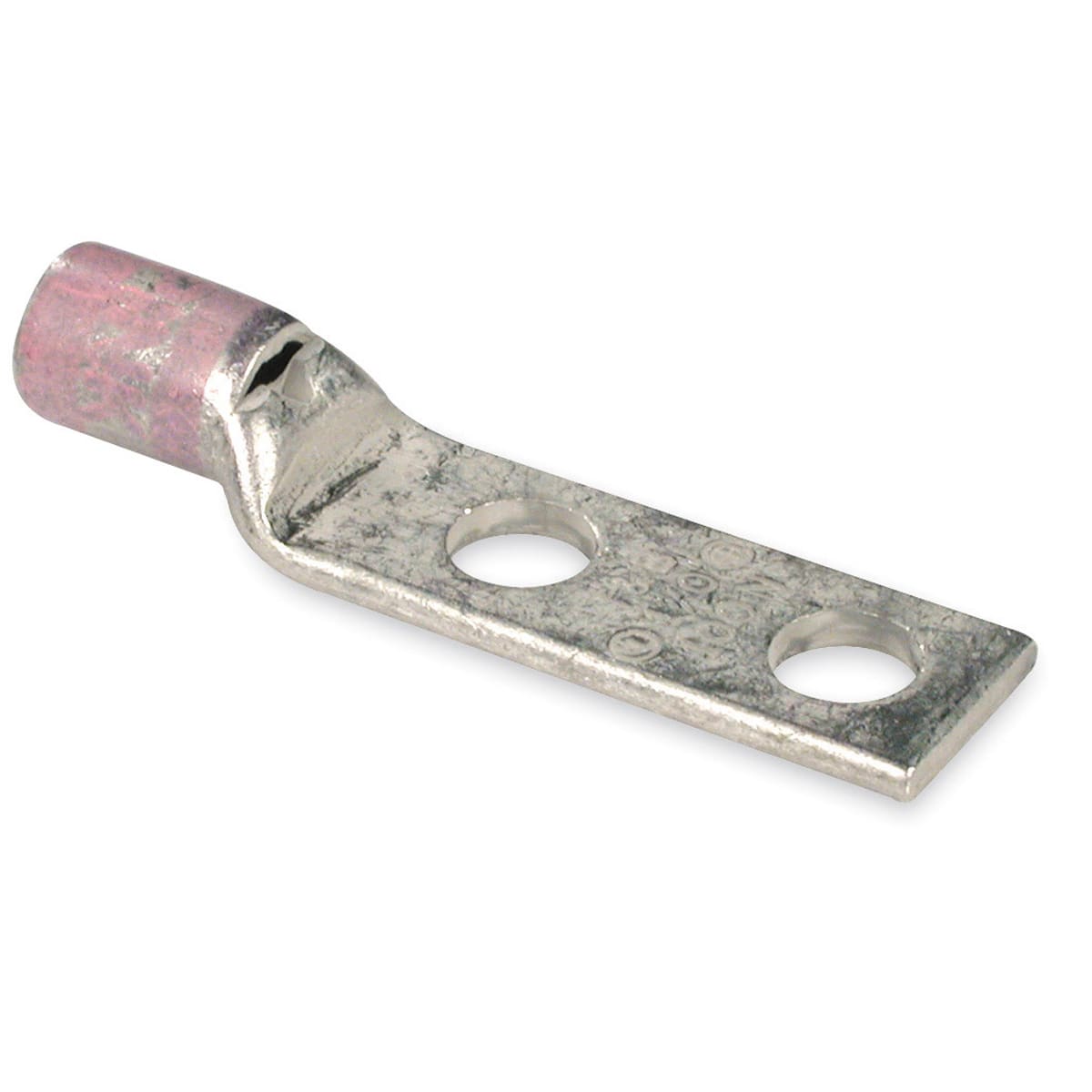

Thomas & Betts Co - ABB 256-30695-886 CU TP 2HL LUG STN
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210896755
Catalog Number - 256-30695-886
Color - Pink
Conductor Size - 1/0 AWG
ERP_productname - TBCO 256-30695-886 CU TP 2HL LUG STND BRL 1/2 3/8B PNK
Packaging
1 ea
EAN
00786210896755
Part #
167034
Catalog #
256-30695-886
Commercial reference
256-30695-886
12-Digit UPC:
786210896755
Catalog Number:
256-30695-886
Color:
Pink
Conductor Size:
1/0 AWG
ERP_productname:
TBCO 256-30695-886 CU TP 2HL LUG STND BRL 1/2 3/8B PNK
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
3.9 Inch
Material:
Copper
Number of Holes:
2 Hole
Sub Brand:
Color-Keyed®
Type:
Standard Barrel
Voltage:
35 kV
Widths:
6.6 in
SoneparProductId:
SKU_US_31277689
Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 Flex 225/24, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Color Code Pink, Die Code 42 Certifications: CSA; UL - Notes: Dimensions given for reference only. Dimensions may vary up to .030.
