Thomas & Betts Co - ABB 262LR-C5260-S 25 LB ELB JS 3/0S
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 075114192170
Amperage - 200 Amp
Applications - 200 kV, 200 Amp
Catalog Number - 262LR-C5260-S
Color - Black
Packaging
1 ea
EAN
00075114192170
Part #
449992
Catalog #
262LR-C5260-S
Commercial reference
262LR-C5260-S
12-Digit UPC:
075114192170
Amperage:
200 Amp
Applications:
200 kV, 200 Amp
Catalog Number:
262LR-C5260-S
Color:
Black
ERP_productname:
ABB 262LR-C5260-S 25 LB ELB JS 3/0STRN4/0SLD .805-1.0
Family Brand Name:
ABB
Material:
Rubber
Size:
9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
Type:

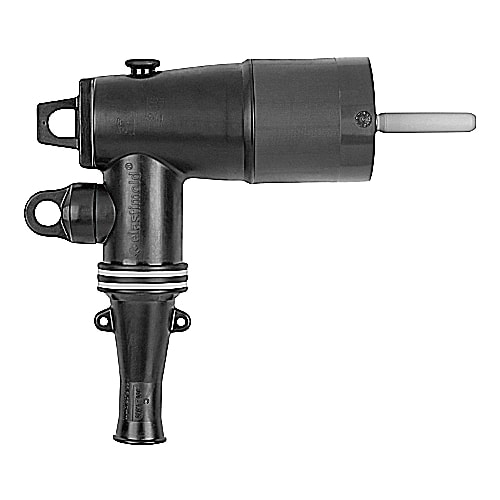

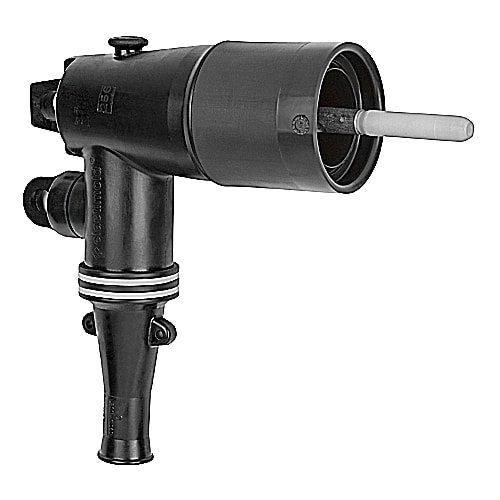

Loadbreak Elbow Connector with Test Point
Voltage:
28 kV
SoneparProductId:
SKU_US_448973563
200 Amp, 25kV, Loadbreak Elbow with Test Point, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 3/0 /Solid 4/0 /mmSquared 85.01. 200ECS Jacket Seal Included.
