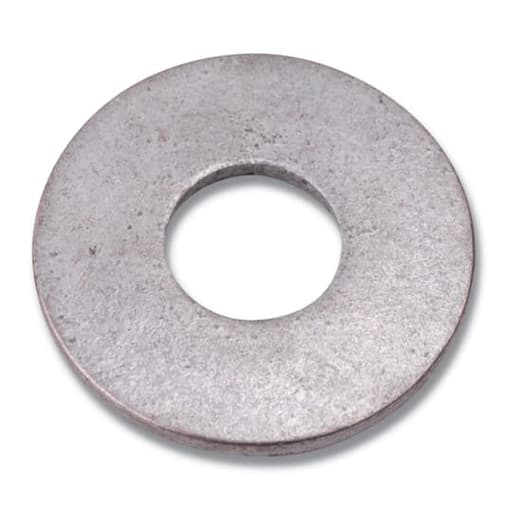

Thomas & Betts Co - ABB 60800-TB WASHER, SPRING, 1/4
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210608006
Applications - For Tight, Secure Bus Bar Connections
Catalog Number - 60800-TB
ERP_productname - TBCO 60800-TB WASHER, SPRING, 1/4
Family Brand Name - Thomas & Betts (T&B)
Packaging
1 ea
EAN
00786210608006
Part #
110878
Catalog #
60800-TB
Commercial reference
60800-TB
12-Digit UPC:
786210608006
Applications:
For Tight, Secure Bus Bar Connections
Catalog Number:
60800-TB
ERP_productname:
TBCO 60800-TB WASHER, SPRING, 1/4
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Zinc
Material:
Steel
Sub Brand:
Color-Keyed®
Type:
Belleville Washer
SoneparProductId:
SKU_US_32150500

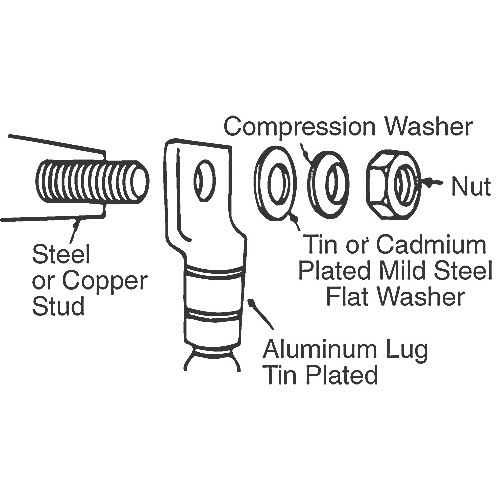

Belleville Spring Washer, 1/4 Inch Bolt Size, Steel with Zinc Chromate Finish Application: For tight, secure bus-bar connections. - Notes: When bolting aluminum lugs and connectors to buss bars with steel or brass hardware, the recommended practice to ensure a tight connection is to use a Belleville spring washer on top of a flat washer under the bolt head or nut. For heavy-duty service where the heat rise is expected to exceed 30 degrees Celcius above ambient, this procedure maintains constant pressure as the connector metals expand and contract with temperature changes.
