Thomas & Betts Co - ABB A71 NON-INS RING TRM 22-16 BOLT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210807980
Catalog Number - A71
Color - Metallic
Conductor Size - 22-16 AWG
ERP_productname - TBCO A71 NON-INS RING TERM, 22-16, 1/4, METALLIC
Packaging
1 ea
EAN
05414363147251
Part #
191991
Catalog #
A71
Commercial reference
A71
12-Digit UPC:
786210807980
Catalog Number:
A71
Color:
Metallic
Conductor Size:
22-16 AWG
ERP_productname:
TBCO A71 NON-INS RING TERM, 22-16, 1/4, METALLIC
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_30059566

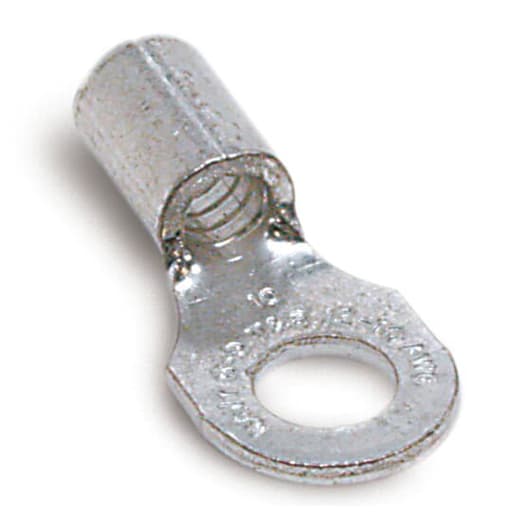

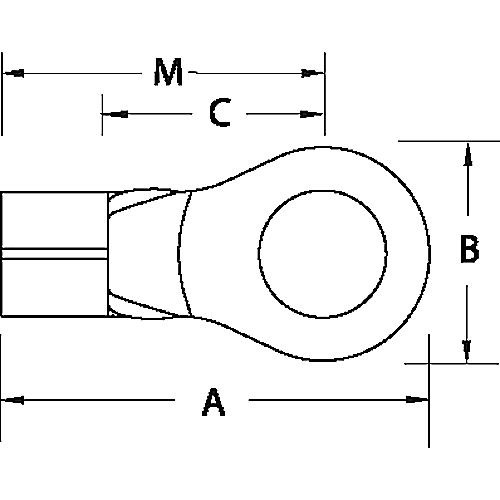

Non-Insulated Ring Terminal, Length .92 Inches, Width .50 Inches, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Copper, Tin Plated, 1,000 Pack Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
