Thomas & Betts Co - ABB AL 350 N AL 2HOLE NEMA STR LUG
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786693580
Applications - General purpose lugs for Aluminum and Copper terminations.
Catalog Number - AL 350 N
Conductor Size - 350 kcmil
ERP_productname - BLKBRN AL 350 N AL 2HOLE NEMA STR LUG 350
Packaging
25 ea
EAN
00783786693580
Part #
449985
Catalog #
AL 350 N
Commercial reference
AL 350 N
12-Digit UPC:
783786693580
Applications:
General purpose lugs for Aluminum and Copper terminations.
Catalog Number:
AL 350 N
Conductor Size:
350 kcmil
ERP_productname:
BLKBRN AL 350 N AL 2HOLE NEMA STR LUG 350
Family Brand Name:
Blackburn
Material:
Aluminum
Size:
Length 6-9/16 inches
Tc Connection:
Compression
Type:
Compression Lug Two Hole
Wire Size:
350 kcmil
SoneparProductId:
SKU_US_71826417

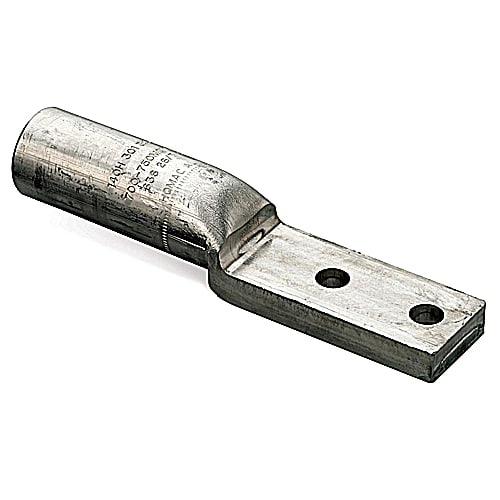

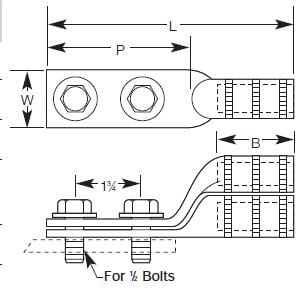

Aluminum Two-Hole NEMA Lugs - straight lug, 336.4 - 350 kcmil AL-CU, ACSR 266.8 (26/7) and 336.4 (18/1), installing dies 96, 299, 655, 1 1/8-1, 705, 13A. Length 6-9/16 inch. Pad 1-35/64 inch wide x 3-9/16 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 2-3/16 inch x 1-7/64 inch Outside Diameter. Oxide Inhibitor. Brown Cap. Features: Dual-Rated for Use with Aluminum and Copper Conductors.; Made of Aluminum for High Strength and High Conductivity.; Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.; All Lugs Marked with Conductor Size and Die References for Easy Identification.; Meets or Exceeds ANSI C119.4 Specifications.
