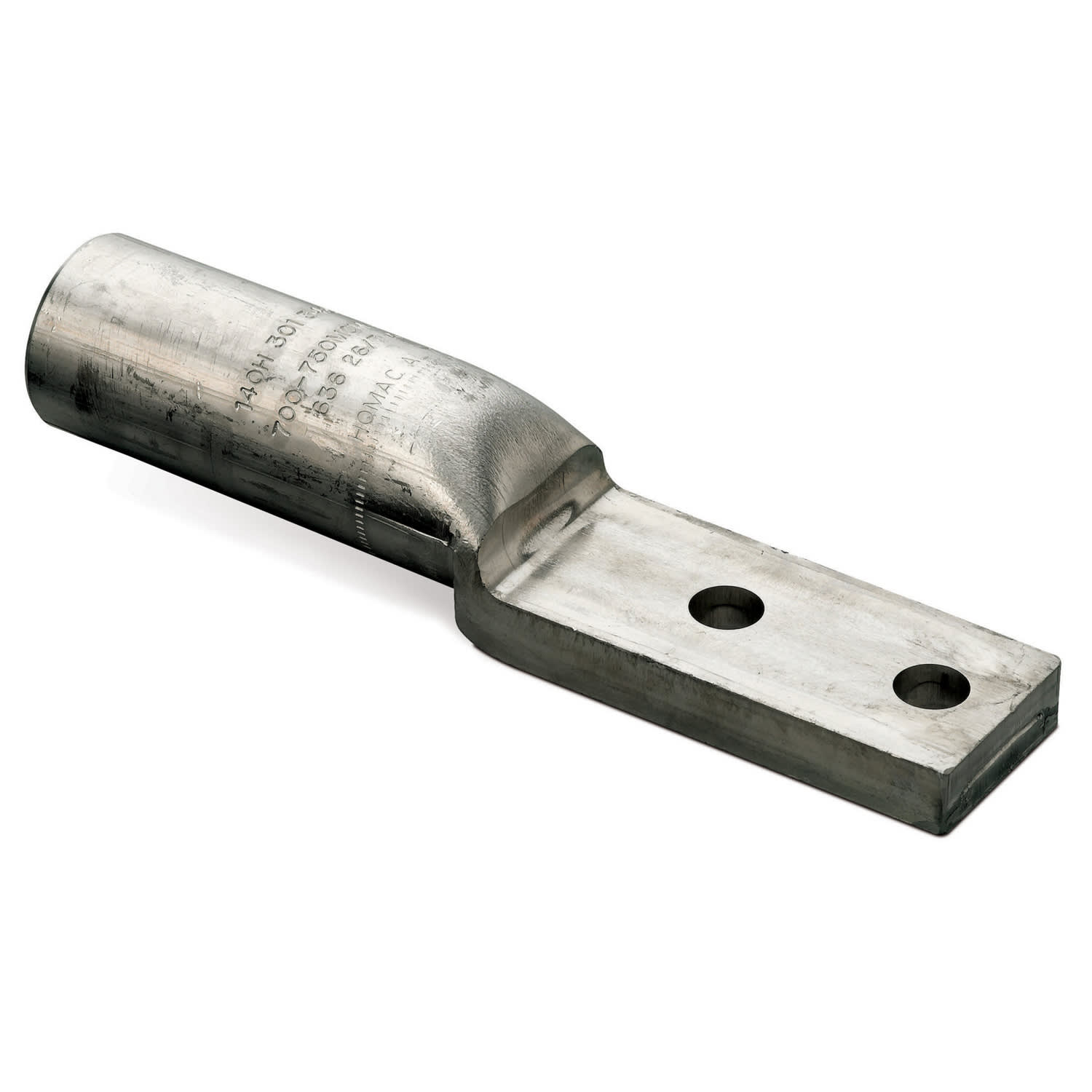

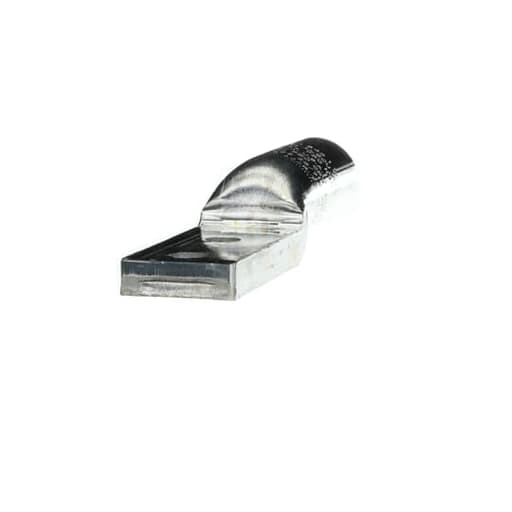

Thomas & Betts Co - ABB AL 750 NTN AL TIN 2HOLE NEMA ST

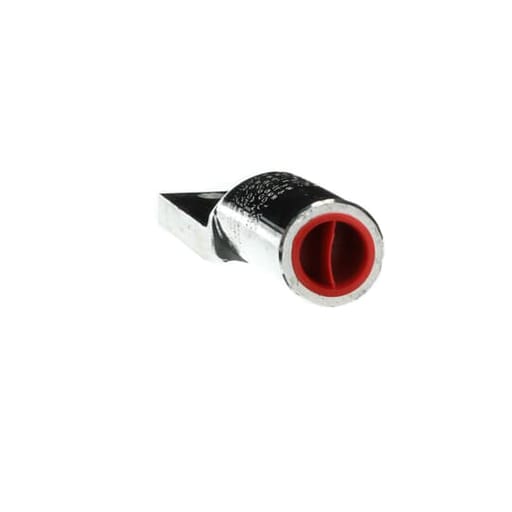

Tin Plated Aluminum Two-Hole NEMA Lugs - straight lug, 750 kcmil AL9CU UL listed, installing dies 140H, 301, 342, 1 1/2. Using Die 1 1/2H 700 kcmil, 750 Compact, 900 Compact, 636(24/7), 636(26/7) ACSR, 721(18/1) 721(30/7) ACAR, 740.8 AAAC. Length 8-1/4 inch. Pad 1-3/4 inch wide x 3-3/4 inch long x 37/64 inch Minimum Thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 3-5/16 inch long x 1-19/32 inch outside diameter. Oxide Inhibitor. Red Cap. Features: Dual-Rated for Use with Aluminum and Copper Conductors.; Made of Aluminum for High Strength and High Conductivity.; Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.; All Lugs Marked with Conductor Size and Die References for Easy Identification.; Meets or Exceeds ANSI C119.4 Specifications.
