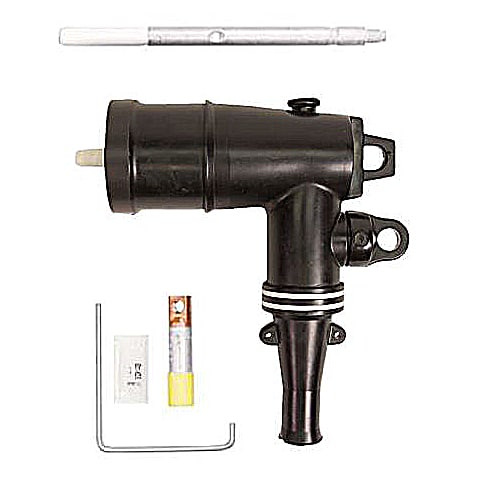

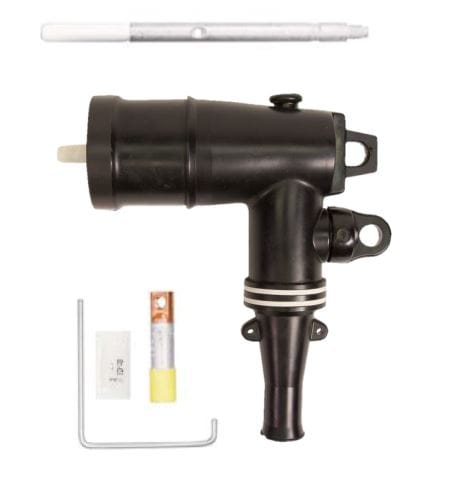

Thomas & Betts Co - ABB Elastimold 162LRC5270SG3 200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.805" to 1.060". Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS-G3 Jacket Seal & Grounding Kit Included.
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 075114188081
Amperage - 200 Amp
Applications - 15kV, 200 Amp
Catalog Number - 162LR-C5270-SG3
Color - Black
Packaging
1 ea
EAN
00075114188081
Part #
313941
Catalog #
162LR-C5270-SG3
Commercial reference
162LR-C5270-SG3
12-Digit UPC:
075114188081
Amperage:
200 Amp
Applications:
15kV, 200 Amp
Catalog Number:
162LR-C5270-SG3
Color:
Black
ERP_productname:
ABB 162LR-C5270-SG3 15 LB ELB 4/0STRN 250SLD .805-1.06
Family Brand Name:
ABB
Material:
Rubber
Size:
7.76 inch (197.1 mm) X 9.03 inch (229.4 mm), 2.92 inch (74.2 mm) Diameter
Tc Connection:
Push-In and Side Wired
Type:
Loadbreak Elbow Connector with Test Point
Voltage:
15 kV
SoneparProductId:
SKU_US_254894501
200 Amp, 15kV, Loadbreak Elbow Connector, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. 200ECS-G3 Jacket Seal and Grounding Kit Included.
