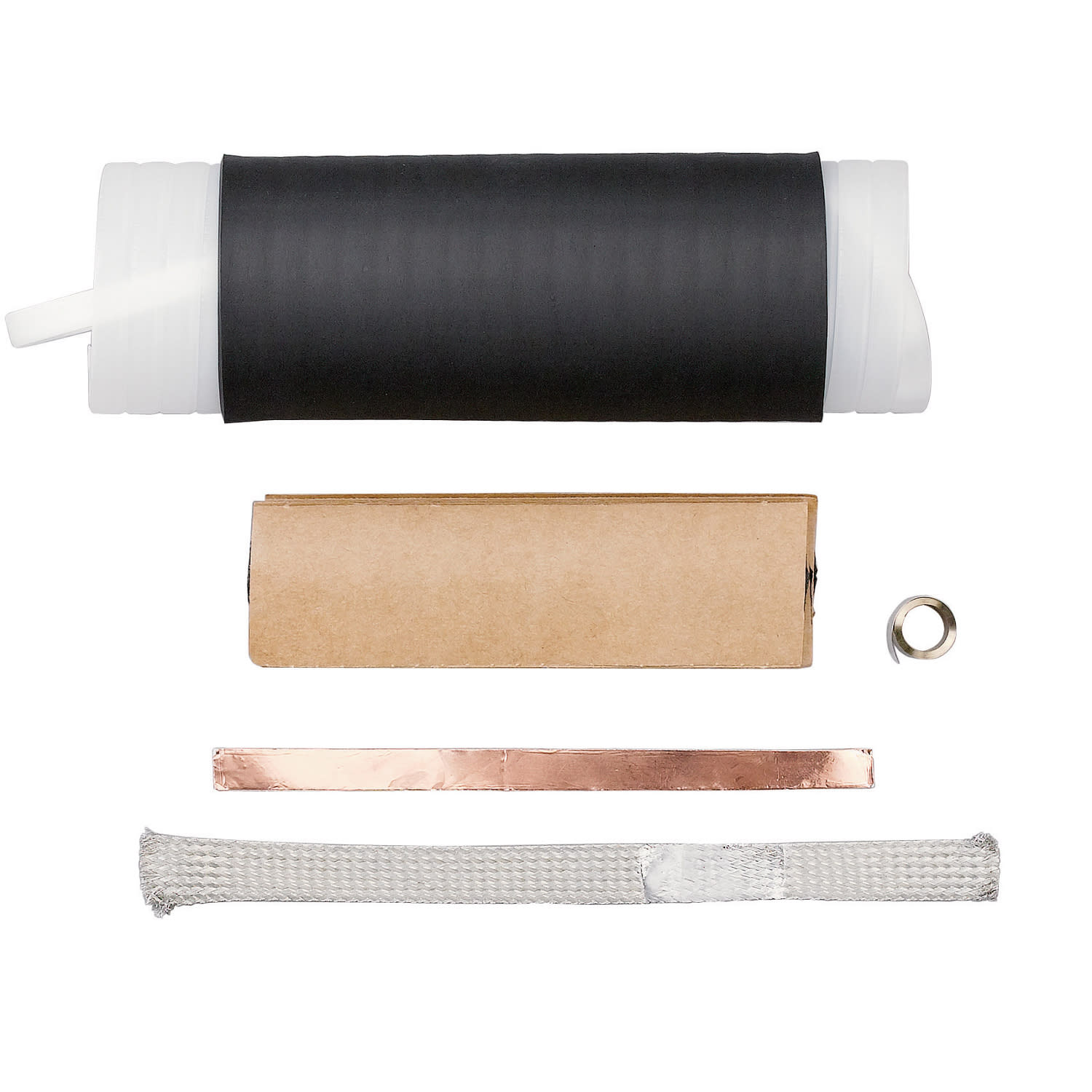

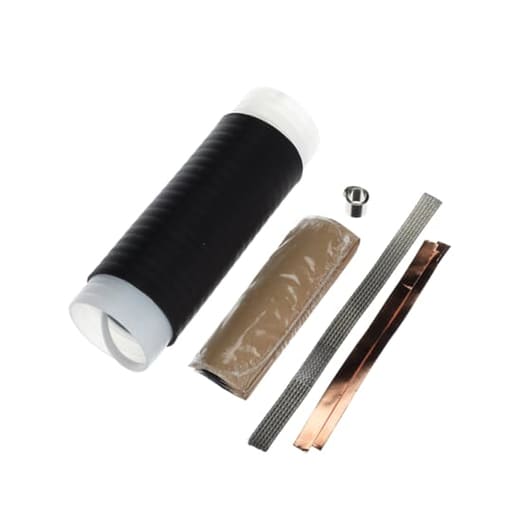

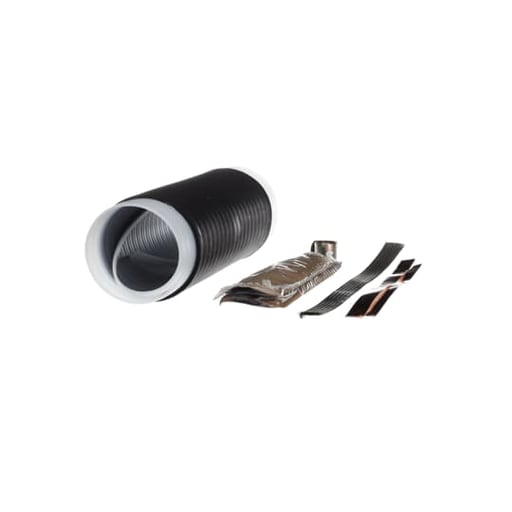

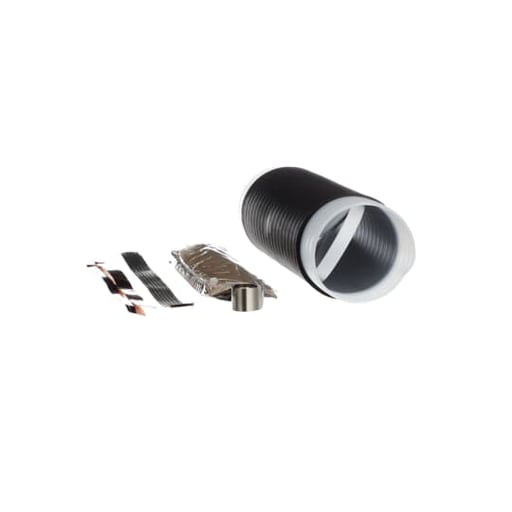

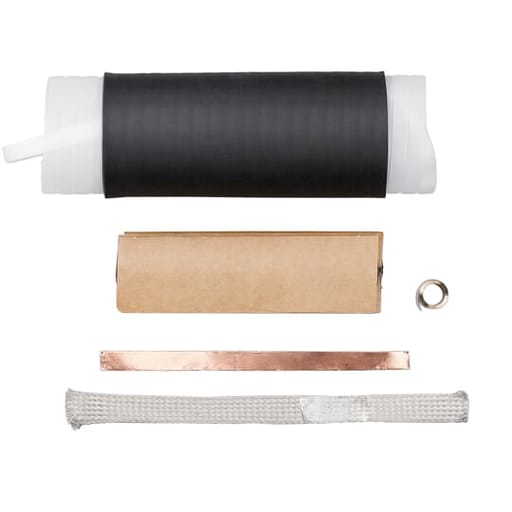

Thomas & Betts Co - ABB Elastimold 200ECS-G3 Cold-Shrinkable Seal w/ Copper Braid & Constant Force Spring. Size Range .80" to 1.50" jacket diameters. Maximum installed diameter is approximately 2 inches.

Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range .80 inch to 1.50 inch jacket diameters. Maximum installed diameter is approximately 2 inches. Application: Elbows, cable joints and terminators have been disigned for use on XLP, EPR or similar solid dielectric insulated power cables. - Notes: Voltage rating equal to Elastimold product being used.; Size range .80\" to 1.50\" jacket diameters. Maximum installed diameter is approximately 2\".; To order the kits as separate items, use the catalog numbers shown in the table. Example: To order a cold-shrinkable tube as a separate item, use catalog numbers 200ECS. To order the kits as components of other items, add the suffix to the end of the catalog number. Example: To order a cold-shrinkable jacket seal as a component of an elbow kit, use catalog number 166LR-A5200-S.; Braid is equivalent to No. 6 copper rod for sizes FA thru HA and No. 2 copper rod for sizes HAB thru JB.
