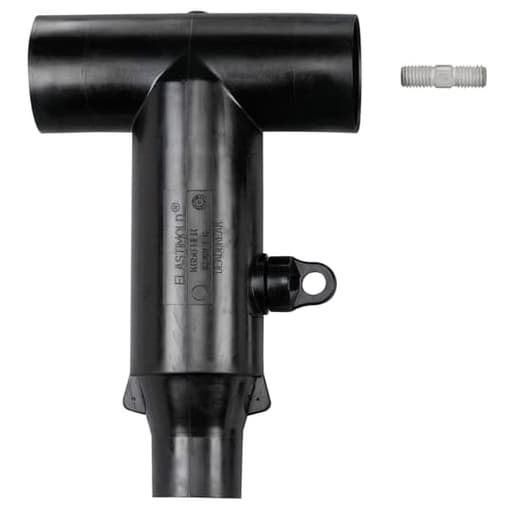

Thomas & Betts Co - ABB Elastimold K656BLR 15/25kV 600 Series Deadbreak Elbow w/ Test Point Housing Only (with Stud)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786640461
Amperage - 600 Amp
Applications - 15/25kv, 600 Amps
Catalog Number - K656BLR
ERP_productname - CARB K656BLR 15/25KV BASIC EL
Packaging
1 ea
EAN
00783786640461
Part #
270178
Catalog #
K656BLR
Commercial reference
K656BLR
12-Digit UPC:
783786640461
Amperage:
600 Amp
Applications:
15/25kv, 600 Amps
Catalog Number:
K656BLR
ERP_productname:
CARB K656BLR 15/25KV BASIC EL
Family Brand Name:
ABB
Material:
Rubber
Size:
Length to Center of Bushing 10.88 inch, Width 8.34 inch
Sub Brand:
Elastimold®
Type:
Deadbreak Elbow with Test Point Housing Only
Voltage:
15/25 kV
SoneparProductId:
SKU_US_72214464
15/25kV 600 Series Deadbreak Elbow with Test Point Housing Only (with Stud) Application: 600 Series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits. - Notes: For 900-amp ratings, substitute 675 for 650 and 655; 676 for 656; K671 for K651; K675 for K650 and K655; K676 for K656; 775 for 750 and 755; 776 for 756 and 2X for 0X in the catalog number. The 900-amp rating requires cooper current-carrying connector components and copper conductor cable.; Available without the stud by adding \"N\" to the catalog number.
