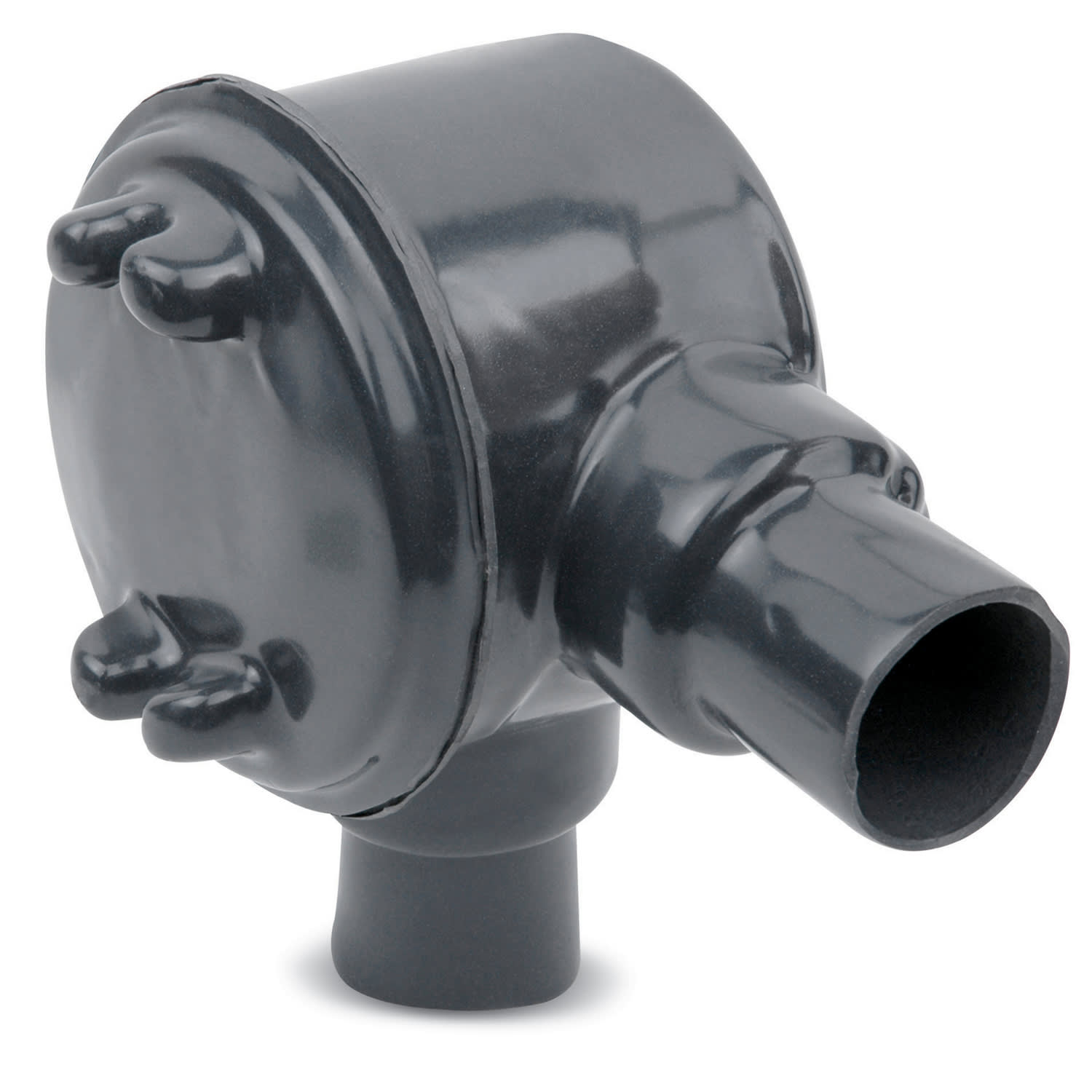

Thomas & Betts Co - ABB GUAL36-G CONDBOX L SHAPE 1IN OP

PVC Double-Coated Conduit Outlet Box for Hazardous Locations, GUAL Type - L Shape, Pipe Size 1 Inch/27 Metric, Box is Ductile Iron with Zinc Plating, Cover is Die Cast Aluminum, Cover Opening 3.00 Inch/76.20 Millimeters, Gray Application: To change direction in rigid conduit systems; GUA series conduit boxes are installed in hazardous locations to protect conductors and act as pull and splice box.; Mounting outlets for fixtures, with proper covers; Provide access to conductors for maintenance and future system changes; Join two or more pieces of conduit long runs - Certifications: CSA; UL - Notes: Ratings are prior to PVC coating; Dimensions are of uncoated fittings; Metric size designator (ANSI C80. 1-1994) - Features: Explosion-proof, dust-ignition-proof, raintight and suitable for use in the following environments. Class I, Division 1 & 2, Groups C & D - Class II, Division 1, Groups E, F, G - Class III, Division 1 & 2 - NEMA 3, 4, 7 CD, 9 EFG.; All units furnished with internal grounding screw and ship complete with aluminum cover with O-ring gasket; Grade 60-45-10 ductile iron bodies and cast aluminum covers; All hubs have a minimum of five full threads, integral bushing and pressure-sealing sleeves; Nominal .002 in. (2 mil) blue urethane coating on both interior and exterior and nominal .040 in. (40 mil) PVC coating bonded to exterior
