Thomas & Betts Co - ABB K656LR-H0300 600 A 15/25 ELBOW
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786475797
Amperage - 600 Amp
Applications - 15/25kV, 600 Amp Deadbreak Elbow Connection
Catalog Number - K656LR-H0300
Color - Black
Packaging
1 ea
EAN
00783786475797
Part #
452340
Catalog #
K656LR-H0300
Commercial reference
K656LR-H0300
12-Digit UPC:
783786475797
Amperage:
600 Amp
Applications:
15/25kV, 600 Amp Deadbreak Elbow Connection
Catalog Number:
K656LR-H0300
Color:
Black
ERP_productname:
BLKBRN K656LR-H0300 600 A 15/25 ELBOW KIT
Family Brand Name:
Elastimold
Material:
Rubber
Size:
Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Type:
Deadbreak Elbow Connector with Test Point
Voltage:
25,000 Volt
SoneparProductId:
SKU_US_529005796

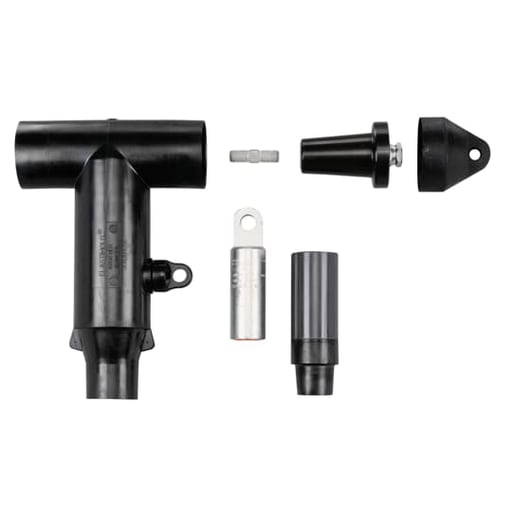

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size Compressed/Stranded 350 or Compact/Solid 400 or mm2 Compact 185.
