Thomas & Betts Co - ABB RA753 INS NYL RNG TERM 22-16 BO
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817323
Applications - For Military Applications
Catalog Number - RA753
Color - Red
Conductor Size - 22-16 AWG
Packaging
1 ea
EAN
05414363157885
Part #
103419
Catalog #
RA753
Commercial reference
RA753
12-Digit UPC:
786210817323
Applications:
For Military Applications
Catalog Number:
RA753
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA753 SK RA753 INS NYL RING TERM 22-16
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Insulated
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_73282177

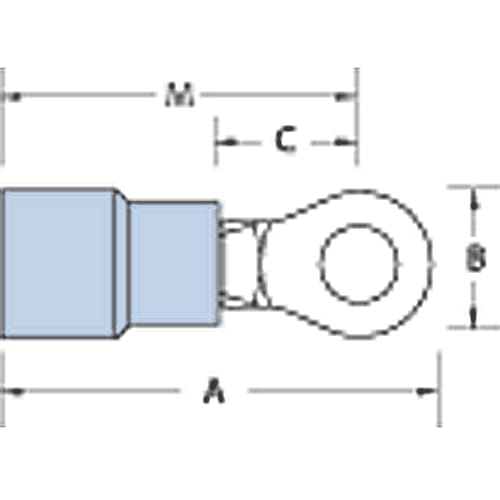

Nylon Insulated Ring Terminal, Length 1.30 Inches, Width .72 Inches, Maximum Insulation .136, Bolt Hole 1/2 Inch, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 1,000 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
