Thomas & Betts Co - ABB RAD18-182 INS NYL FEM-187 DISC
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210814544
Catalog Number - RAD18-182
Color - Red
Conductor Size - 22-18 AWG
ERP_productname - TBCO RAD18-182 INS NYL FEM-187 DISC 22-18 LEN .83
Packaging
1 ea
EAN
05414363934080
Part #
169646
Catalog #
RAD18-182
Commercial reference
RAD18-182
12-Digit UPC:
786210814544
Catalog Number:
RAD18-182
Color:
Red
Conductor Size:
22-18 AWG
ERP_productname:
TBCO RAD18-182 INS NYL FEM-187 DISC 22-18 LEN .83
Family Brand Name:
ABB
Finish:
Electro-Tin Plated
Length:
0.83 Inch
Material:
Brass
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
SoneparProductId:
SKU_US_29824985

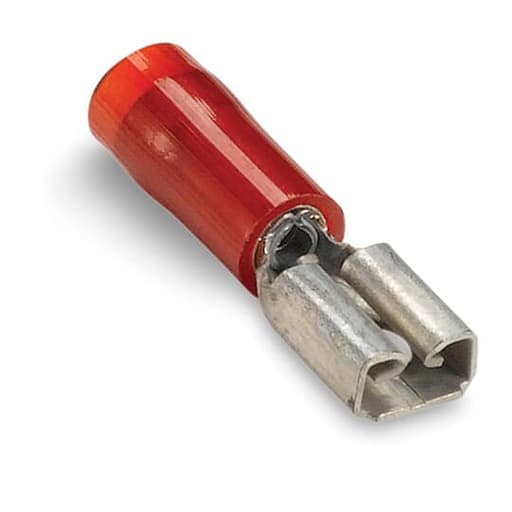

Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .136, Tab Size .187x.020, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated Certifications: UL; CSA - Features: Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
