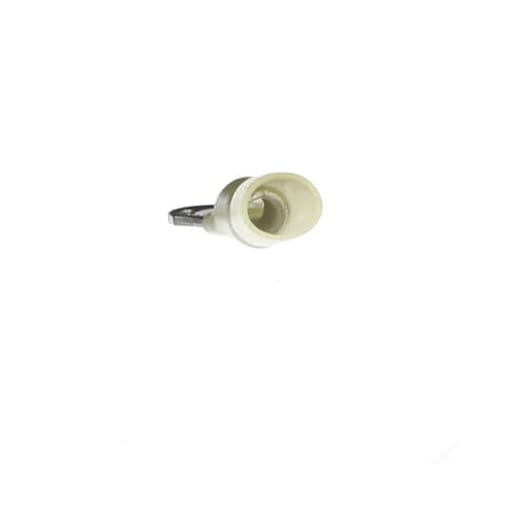

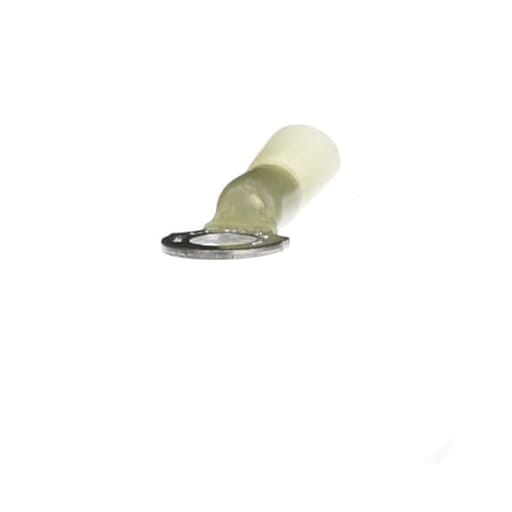

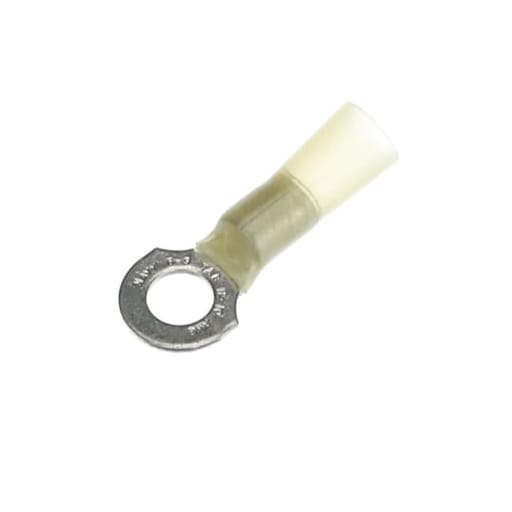

Thomas & Betts Co - ABB RCS10-14X HEAT-SHR RING TERM, 1
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210168081
Catalog Number - RCS10-14X
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - ABB RCS10-14X HEAT-SHR RING TERM, 12-10, 1/4, YEL
Packaging
1 ea
EAN
05414363159599
Part #
315768
Catalog #
RCS10-14X
Commercial reference
RCS10-14X
12-Digit UPC:
786210168081
Catalog Number:
RCS10-14X
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
ABB RCS10-14X HEAT-SHR RING TERM, 12-10, 1/4, YEL
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
1.7 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
2.65 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_29711461
Heat Shrinkable Ring Terminal, Length 1.34 Inches, Width .49 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: UL; CSA - Notes: Not available on Mylar Tape. - Features: These terminals are self-insulated. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
