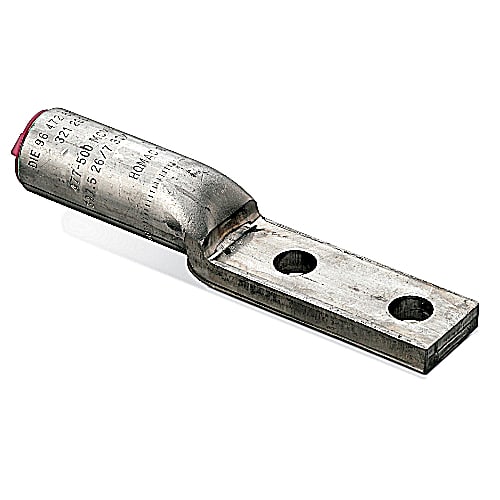

Thomas & Betts Co - ABB SA 350 N AL 2HOLE LUG STR DIE 3

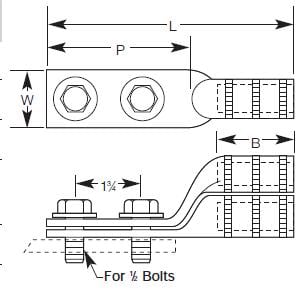

Aluminum Two-Hole Lugs - common die series - straight lugs, Wire Range 336.4 - 350 kcmil AL-CU, 185 mm2, 400 Compact, 350 Compressed, 266.8(26/7) and 336.4(18/1) ACSR. Installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1. Length 6-1/4 inch. Pad 1-1/4 inch wide x 3 inch long x 23/64 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-3/16 inch. Features: Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.; Dual-Rated for Use with Aluminum and Copper Conductors.; Made from Aluminum for High Strength and Conductivity.; Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.; All Lugs Marked with Conductor Size and Die References for Easy Identification.; Meets or Exceeds ANSI C119.4 Specifications.
