Thomas & Betts Co - ABB SA 4/0 N AL 2HOLE LUG STR DIE 4
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786750177
Applications - For General Applications
Catalog Number - SA 4/0 N
Conductor Size - 4/0 AWG-250 kcmil
ERP_productname - BLKBRN SA4/0N AL 2HOLE LUG STR DIE 4/0
Packaging
1 ea
EAN
00783786750177
Part #
360924
Catalog #
SA4/0N
Commercial reference
SA4/0N
12-Digit UPC:
783786750177
Applications:
For General Applications
Catalog Number:
SA 4/0 N
Conductor Size:
4/0 AWG-250 kcmil
ERP_productname:
BLKBRN SA4/0N AL 2HOLE LUG STR DIE 4/0
Family Brand Name:
Homac
Finish:
Bare
Material:
Aluminum
Tc Connection:
Compression
Type:
Compression Lug Two Hole
Wire Size:
4/0-250 kcmil ; 250-300 kcmil
SoneparProductId:
SKU_US_317522405

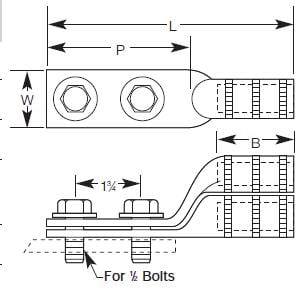

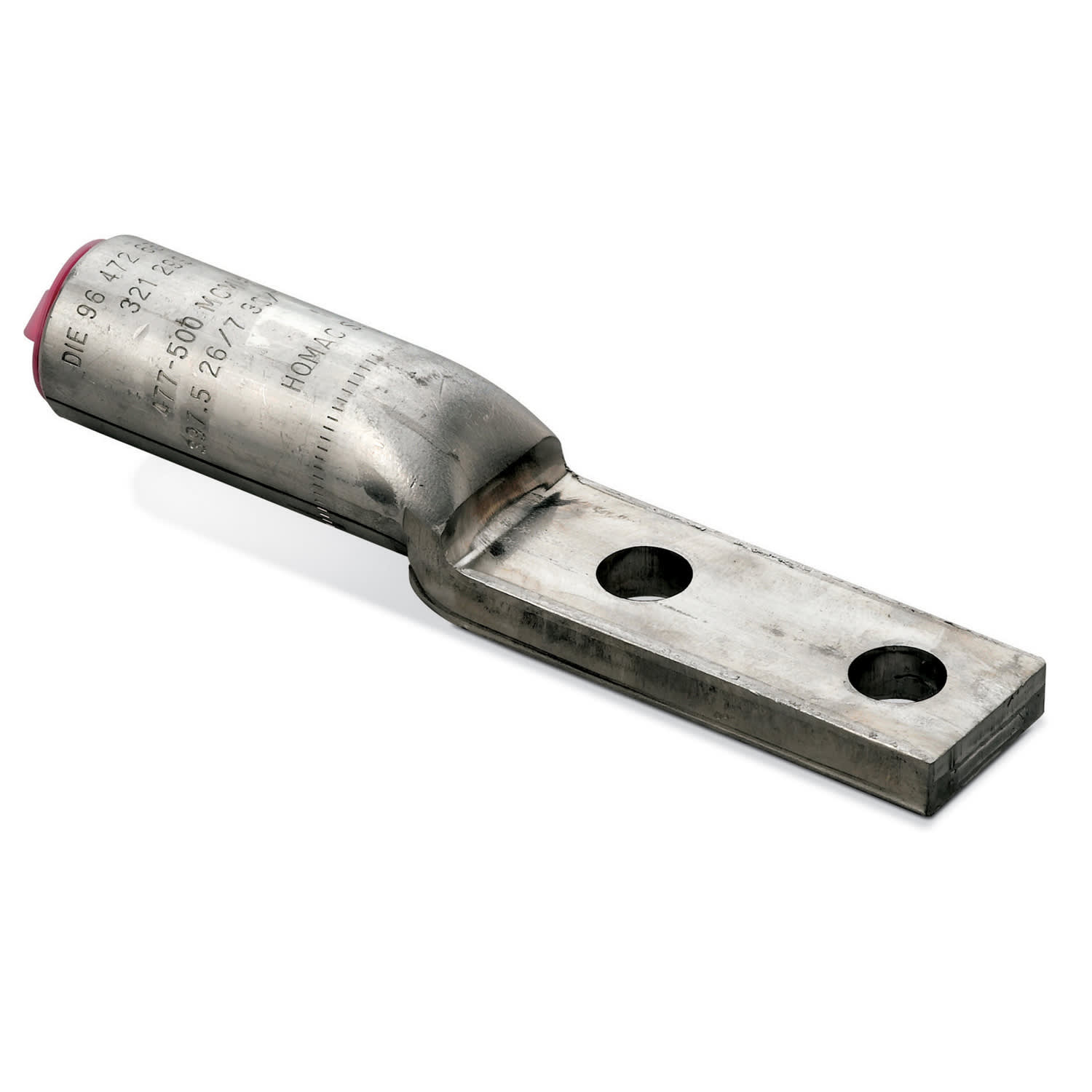

Aluminum Two-Hole Lugs. Wire Range 4/0 ACSR - Stranded, 250 Compact, Installing dies TX, 76, 249, 840 - 845, 11A. Length 6 Inches. Pad 1-7/32 nch wide x 3-3/8 inch long x 19/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 2-15/16 inch. Oxide Inhibitor. Pink Cap. Dual Rated for Aluminum and Copper Conductors Features: Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.; Dual-Rated for Use with Aluminum and Copper Conductors.; Made from Aluminum for High Strength and Conductivity.; Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.; All Lugs Marked with Conductor Size and Die References for Easy Identification.; Meets or Exceeds ANSI C119.4 Specifications.
