Thomas & Betts Co - ABB STG1-G PVC CTD ZINC GROUND HUB
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508408732
Applications - Positively Bonds Conduit to Box or Enclosure
Catalog Number - STG1-G
Color - Gray
ERP_productname - CARB STG1-G 1/2 CTD SEALTIGHT HUB
Packaging
1 ea
EAN
00704508408732
Part #
300887
Catalog #
STG1-G
Commercial reference
STG1-G
12-Digit UPC:
704508408732
Applications:
Positively Bonds Conduit to Box or Enclosure
Catalog Number:
STG1-G
Color:
Gray
ERP_productname:
CARB STG1-G 1/2 CTD SEALTIGHT HUB
Family Brand Name:
Thomas & Betts (T&B)
Finish:
PVC Coated
Material:
Zinc
Size:
1/2 in
Sub Brand:
Ocal®
Trade Size:
1/2 Inch
Type:
Grounded
SoneparProductId:
SKU_US_52645820

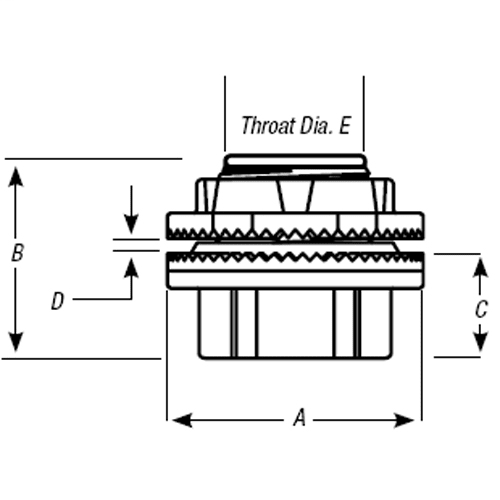

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 1/2 Inch/16 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.59 Inch/14.99 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Hexagonal body and locknut design.; Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Pressure sealing sleeves to protect the connection.; Insulated throat and sharper and deeper teeth.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Innovative sealing ring and groove. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
