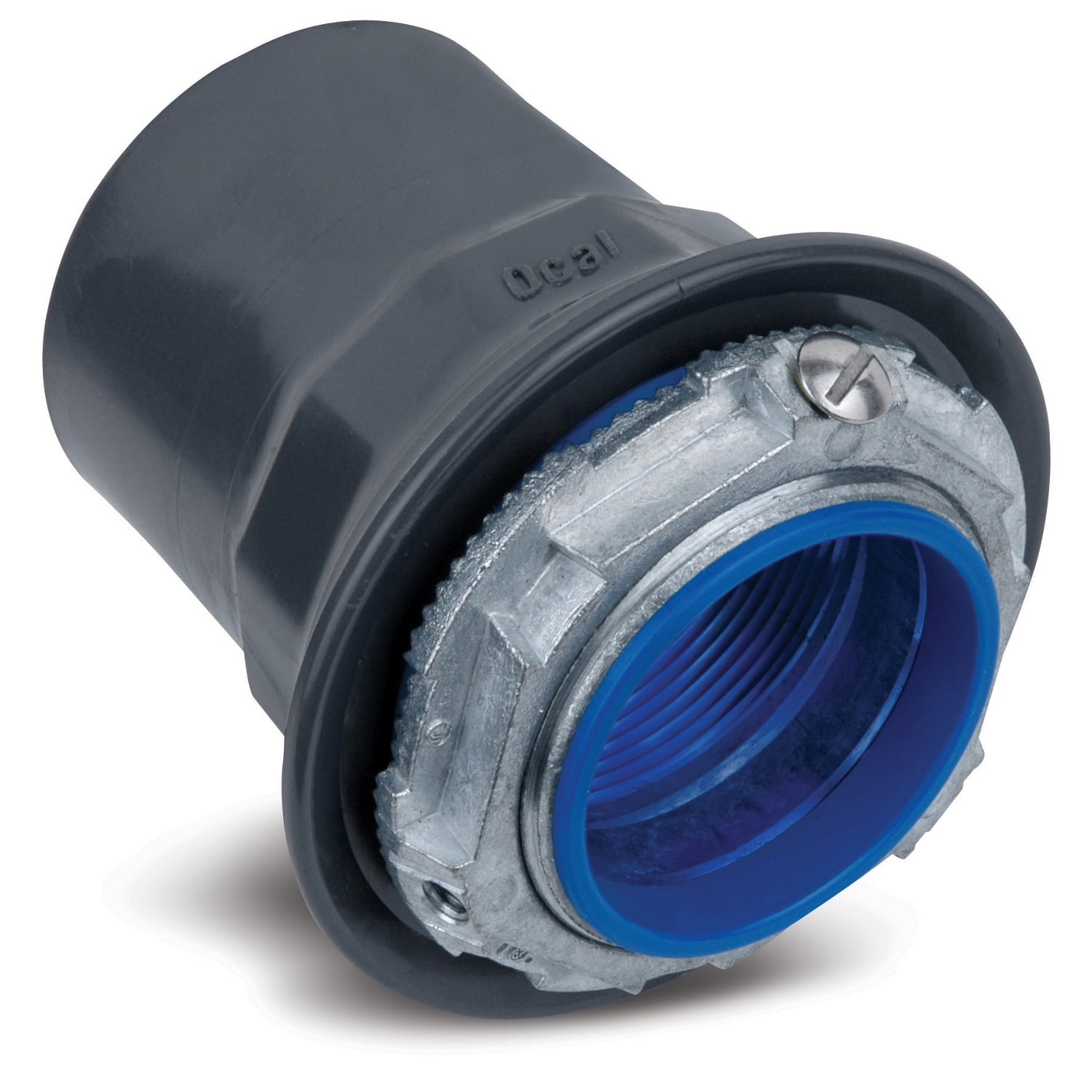

Thomas & Betts Co - ABB STG3-G PVC CTD ZINC GROUND HUB
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 704508408862
Applications - Positively Bonds Conduit to Box or Enclosure
Catalog Number - STG3-G
Color - Gray
ERP_productname - OCAL STG3-G 1 OCAL STG3 GRAY
Packaging
1 ea
EAN
00704508408862
Part #
105558
Catalog #
STG3-G
Commercial reference
STG3-G
12-Digit UPC:
704508408862
Applications:
Positively Bonds Conduit to Box or Enclosure
Catalog Number:
STG3-G
Color:
Gray
ERP_productname:
OCAL STG3-G 1 OCAL STG3 GRAY
Family Brand Name:
Thomas & Betts (T&B)
Finish:
PVC Coated
Material:
Zinc
Size:
1 in
Sub Brand:
Ocal®
Trade Size:
1 Inch
Type:
Grounded
SoneparProductId:
SKU_US_53302043

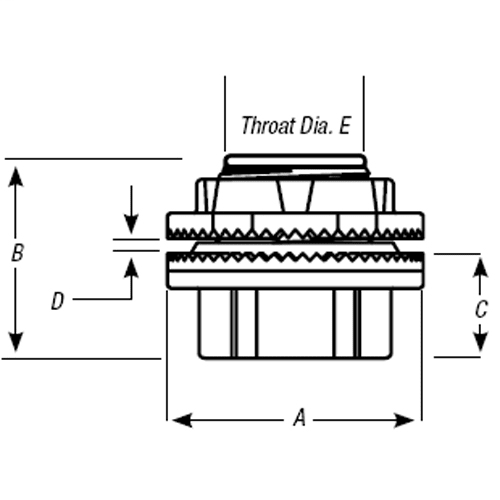

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 1 Inch/27 Metric, Overall Diameter 2.00 Inch/50.80 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 1.00 Inch/25.40 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray Features: Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.; Insulated throat and sharper and deeper teeth.; A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.; Innovative sealing ring and groove.; Pressure sealing sleeves to protect the connection.; Hexagonal body and locknut design. - Notes: Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.; Dimensional values are of uncoated fittings.
