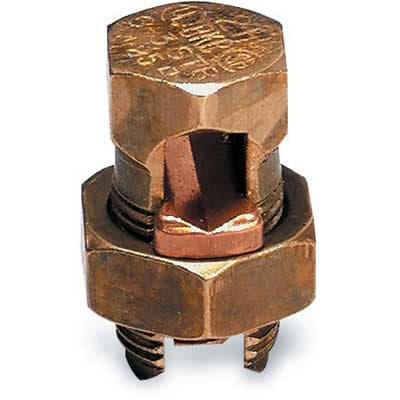

Thomas & Betts Co - Blackburn 4H Copper Split Bolt Connector, 4 Sol - 8 Sol
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786200252
Applications - Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Catalog Number - 4H
Color - Metallic
ERP_productname - BLKBRN 4H 4SOL CU SPLIT BOLT
Packaging
1 ea
EAN
05414363074182
Part #
161595
Catalog #
4H
Commercial reference
4H
12-Digit UPC:
783786200252
Applications:
Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Catalog Number:
4H
Color:
Metallic
ERP_productname:
BLKBRN 4H 4SOL CU SPLIT BOLT
Family Brand Name:
ABB
Finish:
Metallic
Material:
Bronze
Mounting Type:
Hexagon Screw
Sub Brand:
Blackburn®
Type:
High Strength
SoneparProductId:
SKU_US_58142025
Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 4 Sol-8 Sol, Conductor Range for Min Tap with One Max Main 14 Sol Features: Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design. - Standards: UL, CSA - Application: Splicing, tapping or terminating conductors in power and grounding electrical connection. - Notes: UL recognizes solid and stranded conductor configurations for sizes #8 and smaller and stranded configurations only for sizes #6 and larger.
