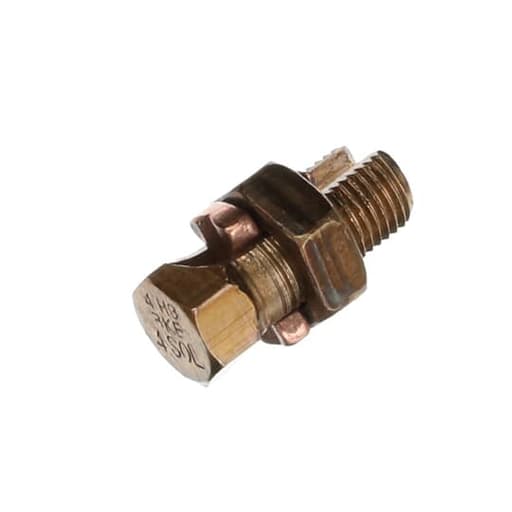

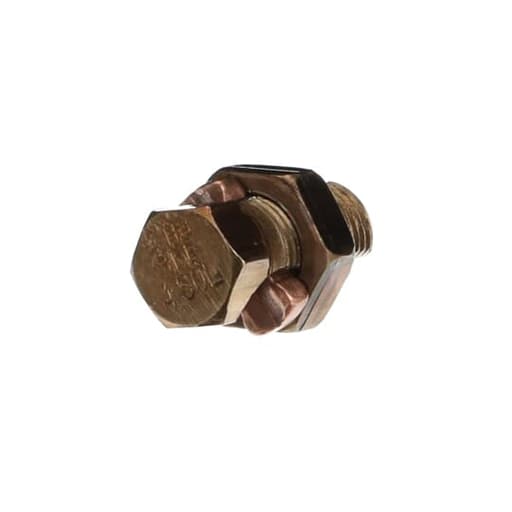

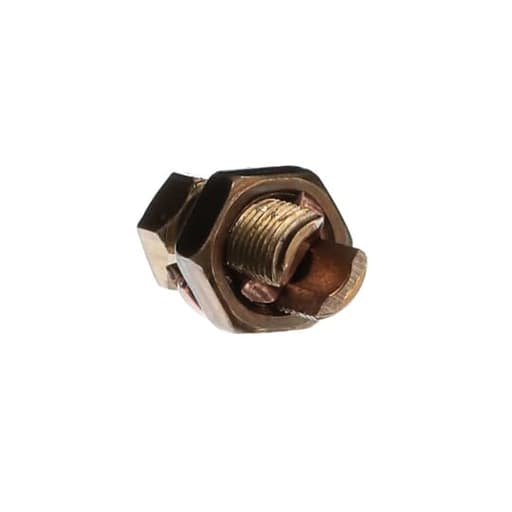

Thomas & Betts Co - Blackburn 4H3 Copper Split Bolt Connector, 4 Sol - 8 Sol, 3-Wire
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786200078
Applications - Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Catalog Number - 4H3
Color - Metallic
ERP_productname - BLKB 4H3 SPLIT BOLT CONNECTOR
Packaging
1 ea
EAN
00783786200078
Part #
123925
Catalog #
4H3
Commercial reference
4H3
12-Digit UPC:
783786200078
Applications:
Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Catalog Number:
4H3
Color:
Metallic
ERP_productname:
BLKB 4H3 SPLIT BOLT CONNECTOR
Family Brand Name:
ABB
Material:
Bronze
Overall Length:
1-9/32 in
Sub Brand:
Blackburn®
Type:
High Strength
SoneparProductId:
SKU_US_58009895
Type H High Strength Split-Bolt Connector, Bronze Alloy for Use on Copper Conductors, Conductor Range for Equal Main and Tap 4 Sol-8 Sol Features: Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design. - Standards: UL, CSA - Application: Splicing, tapping or terminating conductors in power and grounding electrical connection. - Notes: Will accommodate 3 wires of maximum size.; UL recognizes solid and stranded conductor configurations for sizes #8 and smaller and stranded configurations only for sizes #6 and larger.; The H3 bolts are not UL Listed or CSA Certified.
