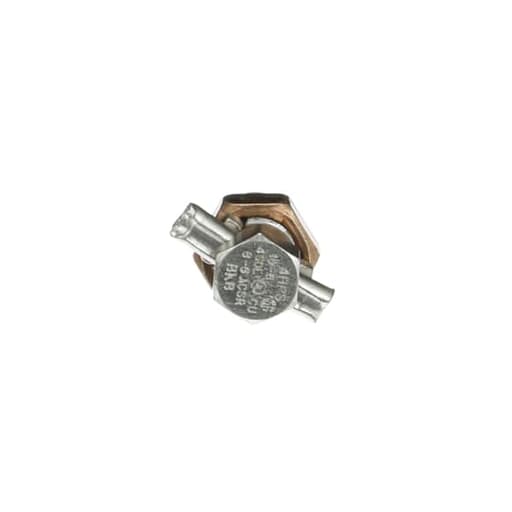

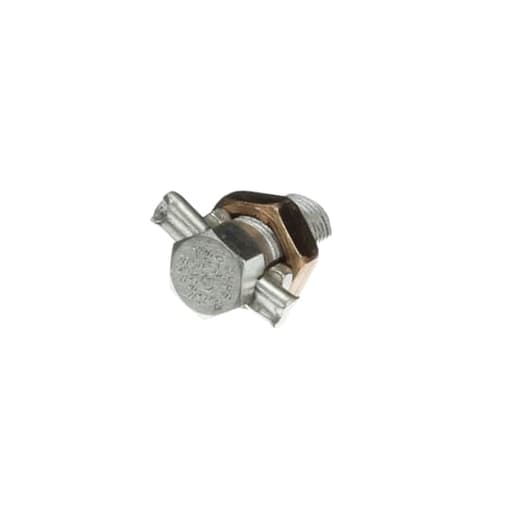

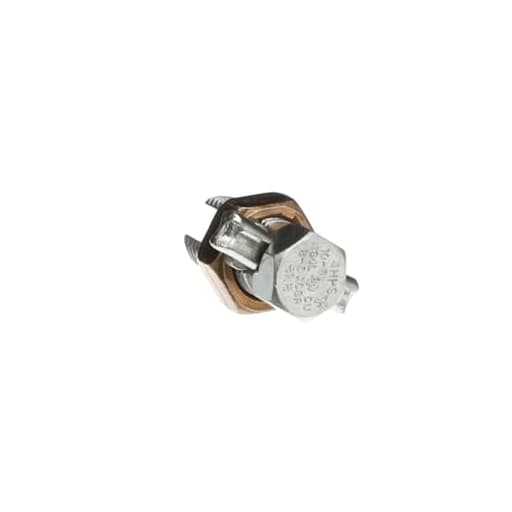

Thomas & Betts Co - Blackburn 4HPS 4-12 AWG Copper Split Bolt Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786200269
Applications - Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Catalog Number - 4HPS
Color - Metallic
ERP_productname - BLKB 4HPS SPLIT-BOLT CONNECTOR 4-12 AWG COPPE
Packaging
1 ea
EAN
05414363142454
Part #
195432
Catalog #
4HPS
Commercial reference
4HPS
12-Digit UPC:
783786200269
Applications:
Splicing, Tapping or Terminating Conductors in Power and Grounding Electrical Connection
Catalog Number:
4HPS
Color:
Metallic
ERP_productname:
BLKB 4HPS SPLIT-BOLT CONNECTOR 4-12 AWG COPPE
Family Brand Name:
ABB
Finish:
Electro-Tin Plated
Material:
Copper
Mounting Type:
Hexagon Screw
Sub Brand:
Blackburn®
Type:
Split-Bolt
SoneparProductId:
SKU_US_58835794
Type HPS Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 6-8, Conductor Range for Equal Main and Tap CU or AL 4 Sol-12 Sol, Min Tap with One Max Main 12 Sol, Tin Plated Features: Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copper. - Application: Splicing, tapping or terminating conductors in power and grounding electrical connection. - Notes: Most connectors are UL and CSA Certified for copper conductor only.; Blackburn Contax recommended when used on aluminum conductor.
