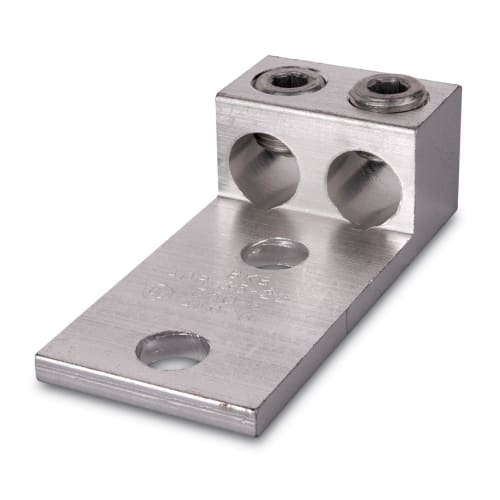

Thomas & Betts Co - Blackburn ADR35-22 Extruded Aluminum Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786610235
Catalog Number - ADR35-22
Conductor Size - 6 AWG-350 kcmil
ERP_productname - BLKB ADR35-22 EXTR ALUM LUG
Family Brand Name - ABB
Packaging
1 ea
EAN
05415022245035
Part #
117129
Catalog #
ADR35-22
Commercial reference
ADR35-22
12-Digit UPC:
783786610235
Catalog Number:
ADR35-22
Conductor Size:
6 AWG-350 kcmil
ERP_productname:
BLKB ADR35-22 EXTR ALUM LUG
Family Brand Name:
ABB
Finish:
Tin Plated
Length:
4-1/4 Inch
Material:
Aluminum
Number of Conductors:
2
Sub Brand:
Blackburn®
Type:
Dual-Rated
SoneparProductId:
SKU_US_59146969

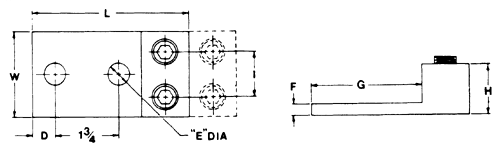

Type ADR-ALCUL Two-Conductor, Two-Hole Mount, Conductor Range 6 Str-350 kcmil, Length 4-1/4 Inches, Width 2-19/64 Inches, Height 1-3/8 Inches, 1/2 Inch Bolt Hole, 1-3/4 Inch Centers, Tin Plated Certifications: UL; CSA - Notes: NEMA spacing 1 3/4 inch centers.; UL 486B tested, AL9CU rated; Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix). - Features: Easy Installation - no special tools required.
