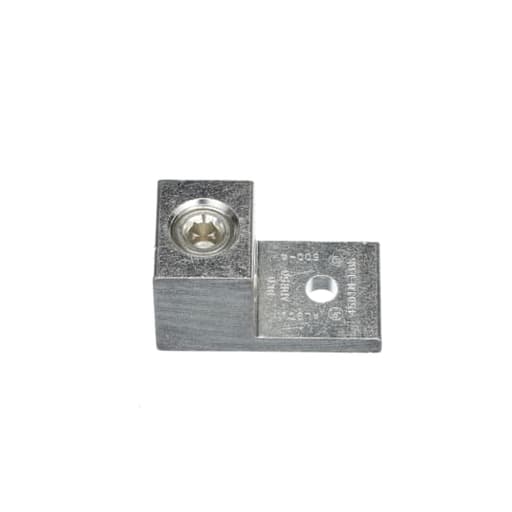

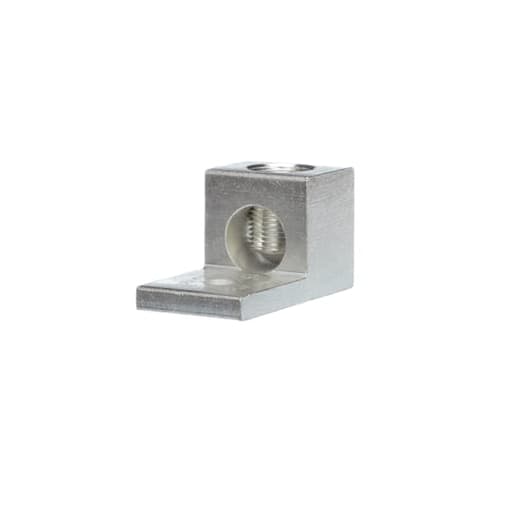

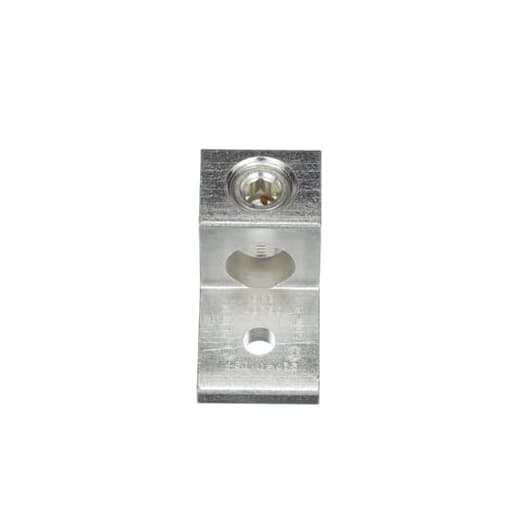

Thomas & Betts Co - Blackburn ADR50 Dual-Rated Single-Conductor, One-Hole Mount Lug, 4 Str - 500 kcmil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786610273
Catalog Number - ADR50
Conductor Size - 4 AWG-500 kcmil
ERP_productname - BLKB ADR50 EXTR ALUM LUG
Family Brand Name - ABB
Packaging
1 ea
EAN
05415022398236
Part #
126006
Catalog #
ADR50
Commercial reference
ADR50
12-Digit UPC:
783786610273
Catalog Number:
ADR50
Conductor Size:
4 AWG-500 kcmil
ERP_productname:
BLKB ADR50 EXTR ALUM LUG
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
1-9/16 Inch
Length:
2-13/16 Inch
Material:
Aluminum
Number of Conductors:
1
Sub Brand:
Blackburn®
Type:
Dual-Rated
Widths:
1 1/2 in
SoneparProductId:
SKU_US_58141741
Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 4 Str-500 Kcmil, Length 2-13/16 Inches, Width 1-1/2 Inches, Height 1-9/16 Inches, Socket Screw, Tin Plated Features: Easy Installation - no special tools required. - Notes: 3/8 inch Hex Socket screw on sizes 500 kcmil and above.; UL 486B tested, AL9CU rated
