Thomas & Betts Co - Blackburn ADR60-22D Extruded Aluminum Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786610341
Catalog Number - ADR60-22D
Conductor Size - 2 AWG-600 kcmil
ERP_productname - BLKB ADR60-22D EXTR ALUM LUG
Family Brand Name - ABB
Packaging
1 ea
EAN
05415022398250
Part #
158340
Catalog #
ADR60-22D
Commercial reference
ADR60-22D
12-Digit UPC:
783786610341
Catalog Number:
ADR60-22D
Conductor Size:
2 AWG-600 kcmil
ERP_productname:
BLKB ADR60-22D EXTR ALUM LUG
Family Brand Name:
ABB
Finish:
Tin Plated
Length:
5-5/16 Inch
Material:
Aluminum
Number of Conductors:
2
Sub Brand:
Blackburn®
Type:
Dual-Rated
SoneparProductId:
SKU_US_59146949

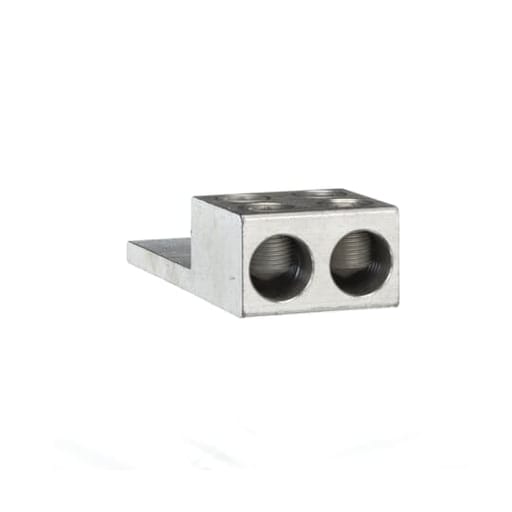

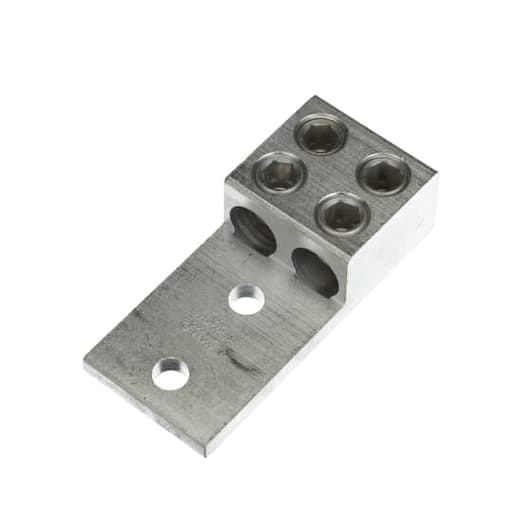

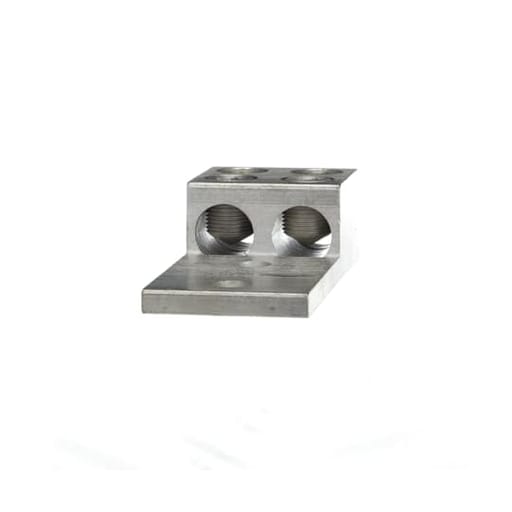

Type ADR-ALCUL Two-Conductor, Two-Hole Mount, Conductor Range 2 Str-600 kcmil, Length 5-5/16 Inches, Width 2-3/4 Inches, Height 1-1/2 Inches, 1/2 Inch Bolt Hole, 1-3/4 Inch Centers, Tin Plated Features: Easy Installation - no special tools required. - Certifications: UL; CSA - Notes: Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).; UL 486B tested, AL9CU rated; NEMA spacing 1 3/4 inch centers.
