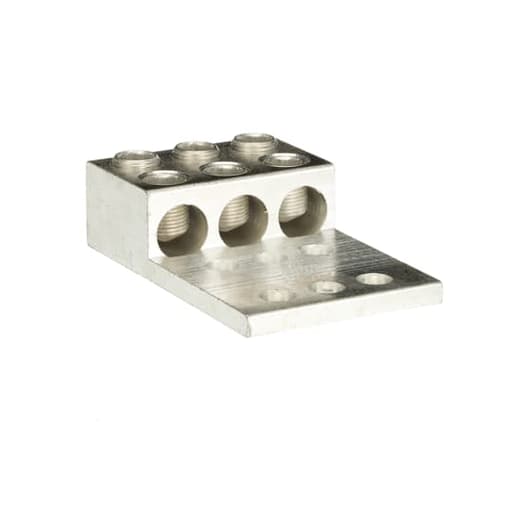

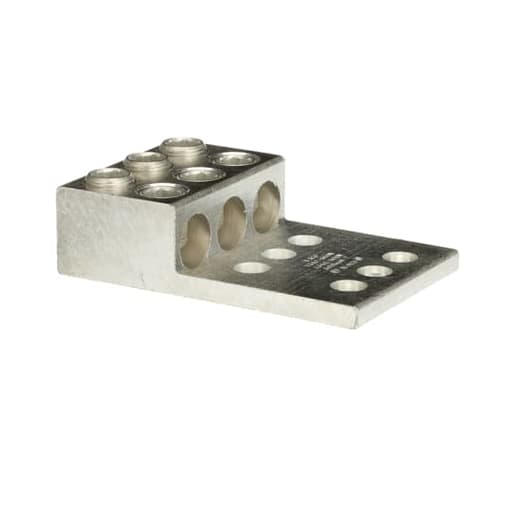

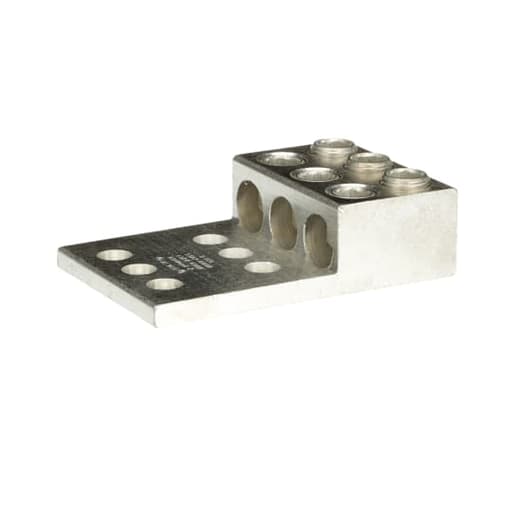

Thomas & Betts Co - Blackburn ADR60-32D Extruded Aluminum Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786610358
Catalog Number - ADR60-32D
Conductor Size - 2 AWG-600 kcmil
ERP_productname - BLKB ADR60-32D EXTR ALUM LUG
Family Brand Name - ABB
Packaging
1 ea
EAN
00783786610358
Part #
216862
Catalog #
ADR60-32D
Commercial reference
ADR60-32D
12-Digit UPC:
783786610358
Catalog Number:
ADR60-32D
Conductor Size:
2 AWG-600 kcmil
ERP_productname:
BLKB ADR60-32D EXTR ALUM LUG
Family Brand Name:
ABB
Finish:
Tin Plated
Length:
5-5/16 Inch
Material:
Aluminum
Number of Conductors:
3
Sub Brand:
Blackburn®
Type:
Dual-Rated
SoneparProductId:
SKU_US_59124087
Type ADR-ALCUL Three-Conductor, Two-Hole Mount, Conductor Range Max 600 kcmil, Min 2 Str, 1/2 Inch Bolt Hole, NEMA Spacing 1-3/4 Inch Centers, Length 5-5/16 Inch, Tin Plated Notes: NEMA spacing 1 3/4 inch centers.; UL 486B tested, AL9CU rated; Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix). - Certifications: UL; CSA - Features: Easy Installation - no special tools required.
