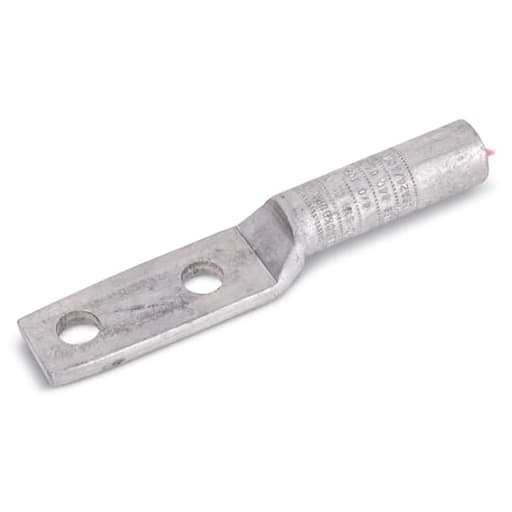

Thomas & Betts Co - Blackburn AL24 Aluminum Compression Terminal

Aluminum Two-Hole Lug - Straight Long Barrel, Wire Range 397 30/7, 26/7, 18/1, 477 18/1 ASCR, 450-500 Stranded, 600 kcmil, 1/2 Inch Bolt Size, Blind-End, Hydraulic Dies: 106H, CSA 28, B20AH, EEI 14A, 318, 1 5/16 Features: Complete die and crimp information clearly indented on each lug. Install with standard tools and dies.; Prefilled with oxide inhibitor.; Extended barrel for additional crimping area or weather-seal for outdoor terminators.; NEMA standard mounting holes. Use 1/2 inch mounting hardware for all sizes. - Notes: Hole Spacing 1 3/4 inches.; Available tin-plated (add suffix P to catalog number).
