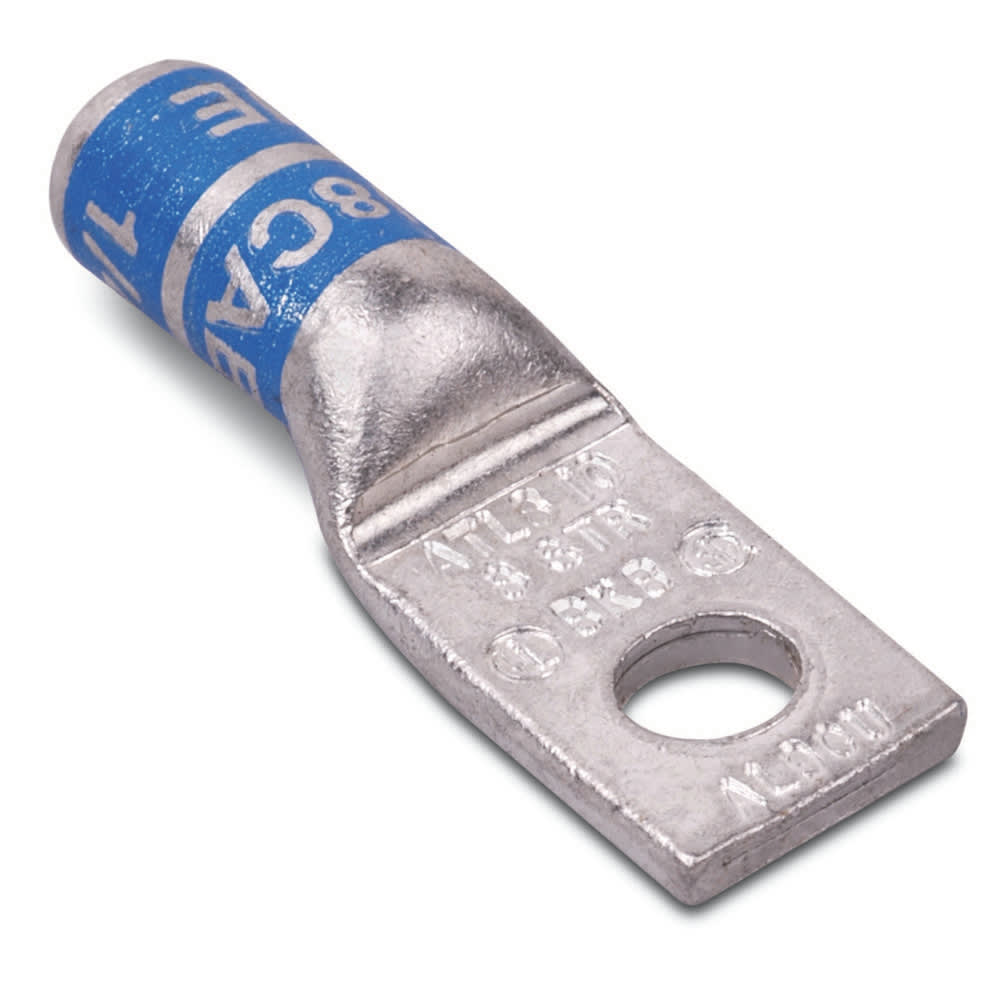

Thomas & Betts Co - Blackburn ATL30-38 Aluminum Composite Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786610990
Applications - For Medium Voltage Applications
Catalog Number - ATL30-38
Color - Ruby
Conductor Size - 3/0 AWG
Packaging
1 ea
EAN
05415022239652
Part #
112287
Catalog #
ATL30-38
Commercial reference
ATL30-38
12-Digit UPC:
783786610990
Applications:
For Medium Voltage Applications
Catalog Number:
ATL30-38
Color:
Ruby
Conductor Size:
3/0 AWG
ERP_productname:
BLKB ATL30-38 3/0 AL TP COMP LUG 1HL 3/8IN RUBY
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Tin Plated
Heights:
2.3 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Sub Brand:
Blackburn®
Type:
Aluminum One-Hole Lug
Voltage:
35 Volt
Widths:
2.8 in
SoneparProductId:
SKU_US_59363305
Type ATL Aluminum One-Hole Lug, Max 35kV, Wire Size 3/0 Str, 3/8 Inch Bolt Hole, Tin Plated, Die Color Code Ruby Notes: For use with aluminum conductor (concentric, compressed or compact). Also listed for use with copper conductor. - Certifications: UL; CSA - Features: UL Listed when installed with Blackburn, Burndy, T&B or Andersons Tools.; Made of high-conductivity seamless aluminum tubing. Tin plated for corrosion resistance.; Specifically chamfered barrel for ease of installation.; Color-coded for matching die identification. Prefilled with oxide inhibiting compound.
