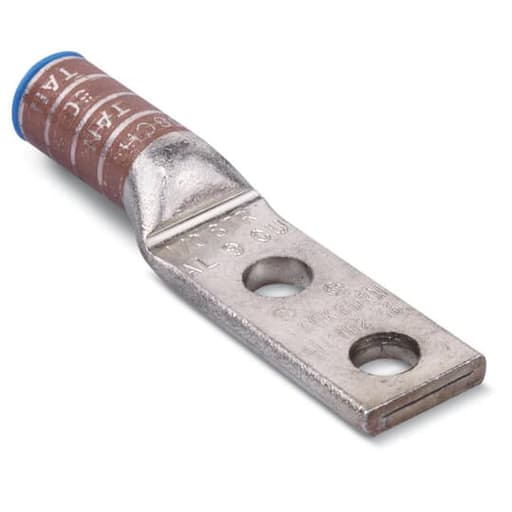

Thomas & Betts Co - Blackburn ATL4002 400 kcmil Tiined Aluminum 2-Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786611218
Applications - For Aluminium Conductors
Catalog Number - ATL4002
Color - Green
Conductor Size - 400 kcmil
Packaging
1 ea
EAN
05415022298376
Part #
250032
Catalog #
ATL4002
Commercial reference
ATL4002
12-Digit UPC:
783786611218
Applications:
For Aluminium Conductors
Catalog Number:
ATL4002
Color:
Green
Conductor Size:
400 kcmil
ERP_productname:
CARB ATL4002 400 AL TP COMP LUG 2HL 1/2IN GRN
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Aluminum
Number of Holes:
2 Hole
Overall Length:
6-11/16 in
Sub Brand:
Blackburn®
Type:
Aluminum Two-Hole Lug
Voltage:
35 kV
Wire Size:
400 kcmil
SoneparProductId:
SKU_US_30742891
Type Aluminum Two-Hole Lug, Max 35kV, Wire Size 400 kcmil, 1/2 Inch Bolt Hole, Tin Plated, Die Color Code Green Features: Color-coded for matching die identification. Prefilled with oxide inhibiting compound.; Made of high-conductivity seamless aluminum tubing. Tin plated for corrosion resistance.; UL Listed when installed with Blackburn, Burndy, T&B or Andersons Tools.; Specifically chamfered barrel for ease of installation. - Notes: For use with aluminum conductor (concentric, compressed or compact). Also listed for use with copper conductor.
