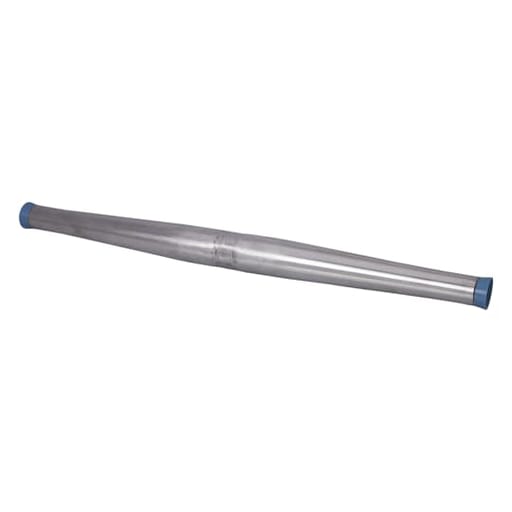

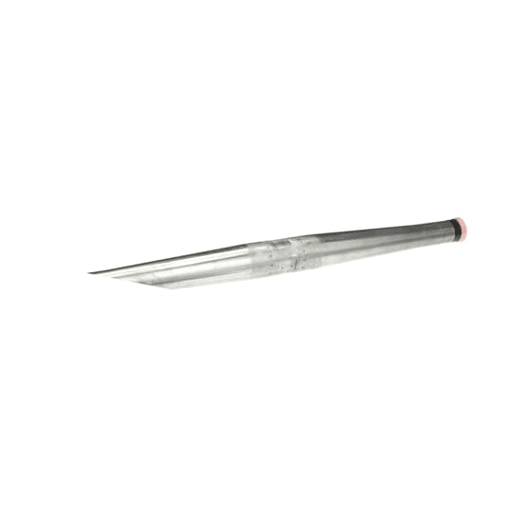

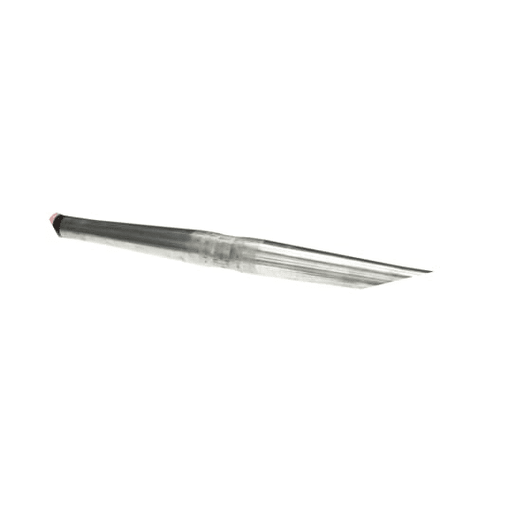

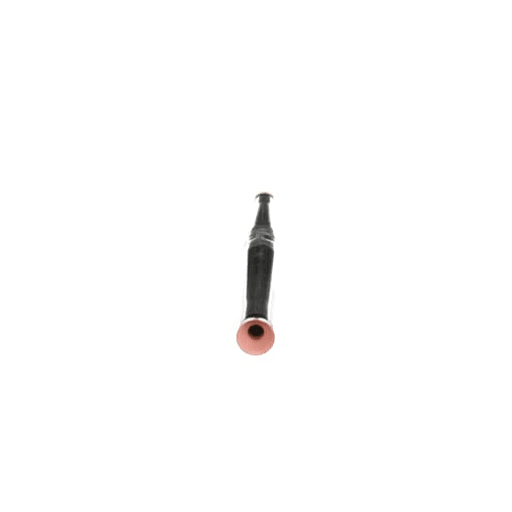

Thomas & Betts Co - Blackburn ATS3040 Automatic Tension Splice

Autoset Automatic Tension Splice for Wire Range: 3/0 6/1, 4/0 6/1 ASCR, 3/0-4/0 AAAC, 3/0-4/0 AAC, Aluminum, Color Code 3/0 - Black, 4/0 - Pink Features: Color-coded end pieces provide for visual identification of maximum conductor size. Color-coded tape further eliminates errors and speeds up installations. Funnel shape swiftly guides conductor into position for insertion.; Die-cast, precision-made jaws provides optimum contact area for a greater range of conductor sizes. Compression spring positions the jaw for positive conductor acceptance.; Pilot cap envelops strands and guides conductor past serrated jaws and into the center of the splice.; High-Strength aluminum alloy tubing covers the connection for superior corrosion protection and long-lasting durability. Tubular center stop automatically determines proper insertion length of both conductors.
