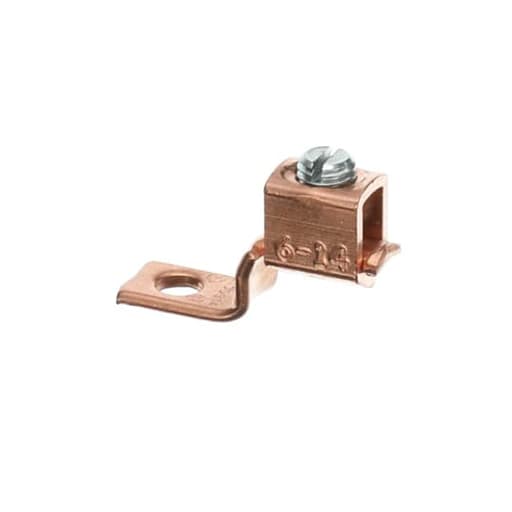

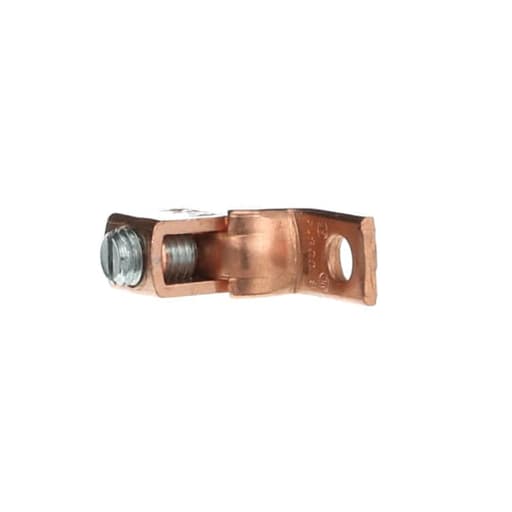

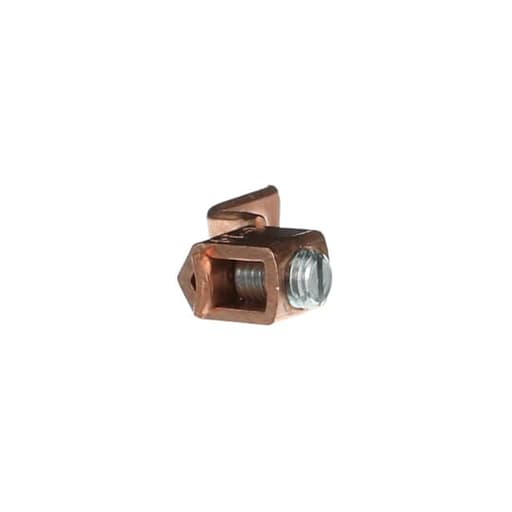

Thomas & Betts Co - Blackburn BTC0614 Offset Copper Mechanical Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786611317
Catalog Number - BTC0614
Conductor Size - 14-6 AWG
ERP_productname - BLKB BTC0614 OFFSET CU MECH CONNECTOR
Family Brand Name - ABB
Packaging
1 ea
EAN
05414363148685
Part #
106320
Catalog #
BTC0614
Commercial reference
BTC0614
12-Digit UPC:
783786611317
Catalog Number:
BTC0614
Conductor Size:
14-6 AWG
ERP_productname:
BLKB BTC0614 OFFSET CU MECH CONNECTOR
Family Brand Name:
ABB
Heights:
25/32 Inch
Length:
1-3/32 Inch
Material:
Copper
Number of Conductors:
1
Sub Brand:
Blackburn®
Type:
Copper Connectors
Widths:
3/8 in
SoneparProductId:
SKU_US_26035995
Type BTC - Copper Single-Conductor, One-Hole Mount (Offset-Tang), Conductor Range 6 Str-14 AWG, Length 1-9/64, Width 3/8 Inch, Height 11/16 Inch, 13/64 Bolt Inch Hole Features: Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal.; Made of electrolytic seamless copper. Screws are zinc-plated steel. - Notes: UL 486A tested.
