Thomas & Betts Co - Blackburn CSP8 Copper Splice Sleeve
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786132034
Catalog Number - CSP8
Color - Red
Conductor Size - 8 AWG
ERP_productname - BLKB CSP8 CU TP SPLICE SHORT BRL 8STR RED
Packaging
1 ea
EAN
00783786132034
Part #
112584
Catalog #
CSP8
Commercial reference
CSP8
12-Digit UPC:
783786132034
Catalog Number:
CSP8
Color:
Red
Conductor Size:
8 AWG
ERP_productname:
BLKB CSP8 CU TP SPLICE SHORT BRL 8STR RED
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Tin Plated

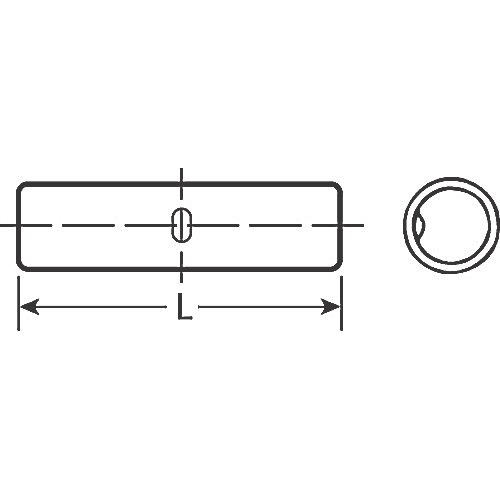

Length:
1 Inch
Material:
Copper
Sub Brand:
Blackburn®
Type:
Short Barrel
Voltage:
35 kV
SoneparProductId:
SKU_US_59361669
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 8 Str, Tin Plated, Die Color Code Red Features: Specifically chamfered barrel for ease of installation.; Color-coded for matching die identification.; Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.; UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.; Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance. - Notes: For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
