Thomas & Betts Co - Blackburn CTL20L-38 Compression Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786410378
Applications - For Copper Conductors
Catalog Number - CTL20L-38
Color - Black
Conductor Size - 2/0 AWG
Packaging
1 ea
EAN
00783786410378
Part #
195464
Catalog #
CTL20L-38
Commercial reference
CTL20L-38
12-Digit UPC:
783786410378
Applications:
For Copper Conductors
Catalog Number:
CTL20L-38
Color:
Black
Conductor Size:
2/0 AWG
ERP_productname:
BLKB CTL20L-38 COMPR TERMINAL
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
2.3 Inch
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2-1/4 in
Sub Brand:
Blackburn®
Type:
Long Barrel
Voltage:
35 Volt
Widths:
2.8 in
SoneparProductId:
SKU_US_58943538

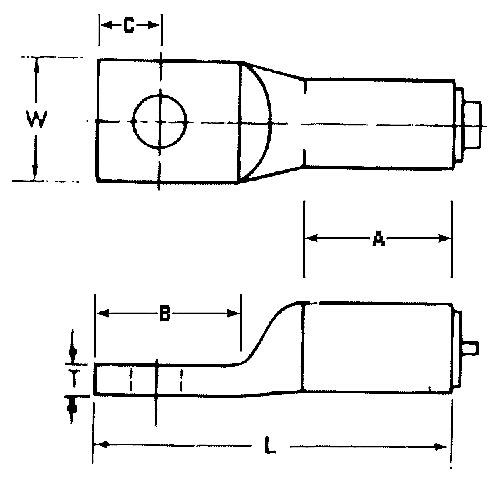

Copper One-Hole Lug, Long Barrel, Max 35kV, 2/0 Str. Wire, 3/8 Bolt Size, Tin Plated, Die Color Code Black Features: UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.; Color-coded for matching die identification.; Specifically chamfered barrel for ease of installation.; Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.; Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations. - Certifications: CSA; UL - Notes: For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
