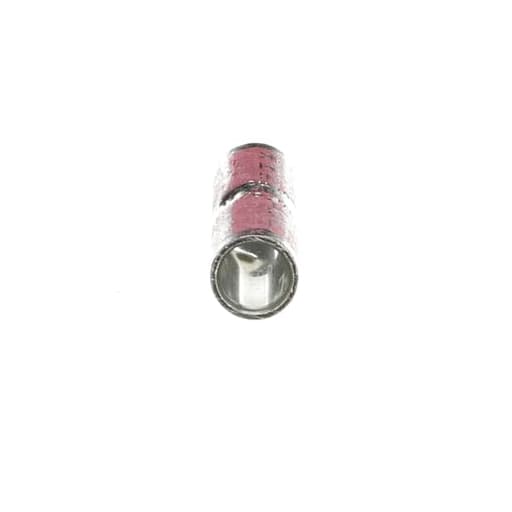

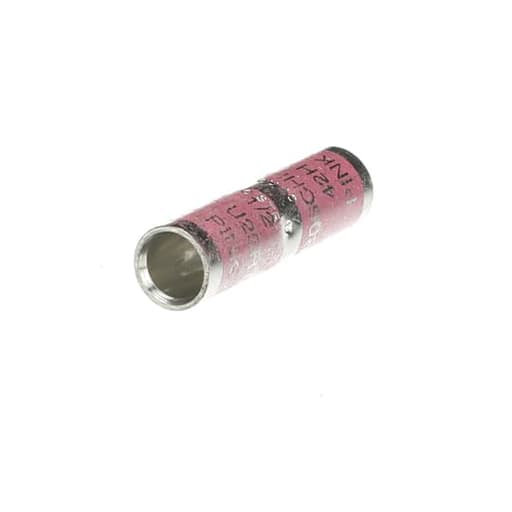

Thomas & Betts Co - Blackburn CU10 Copper Compression Sleeve
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786132195
Catalog Number - CU10
Color - Pink
Conductor Size - 1/0 AWG
ERP_productname - BLKB CU10 CU COMPRESSION SLEEVE
Packaging
1 ea
EAN
05415022245462
Part #
185146
Catalog #
CU10
Commercial reference
CU10
12-Digit UPC:
783786132195
Catalog Number:
CU10
Color:
Pink
Conductor Size:
1/0 AWG
ERP_productname:
BLKB CU10 CU COMPRESSION SLEEVE
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Tin Plated
Length:
2 Inch
Material:
Copper
Sub Brand:
Blackburn®
Type:
Long Barrel
Voltage:
35 kV
Wire Size:
0 AWG
SoneparProductId:
SKU_US_59361518
Type CU Copper Splice, Long Barrel, 2 Inch Length, Max 35kV, Wire Size 1/0 Str, Tin Plated, Die Color Code Pink Features: Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.; UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.; Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.; Color-coded for matching die identification.; Specifically chamfered barrel for ease of installation. - Notes: For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
