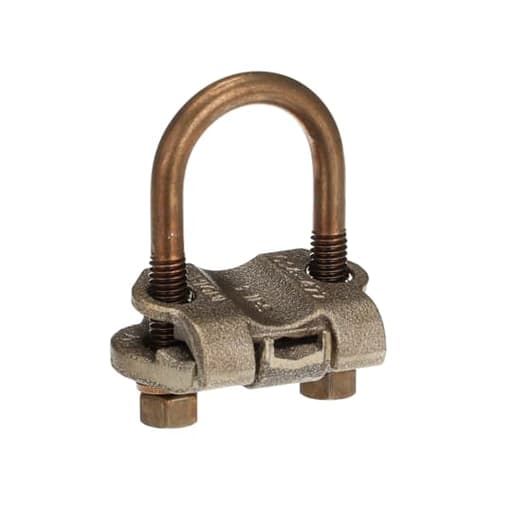

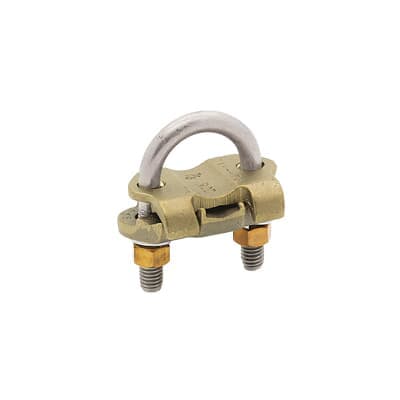

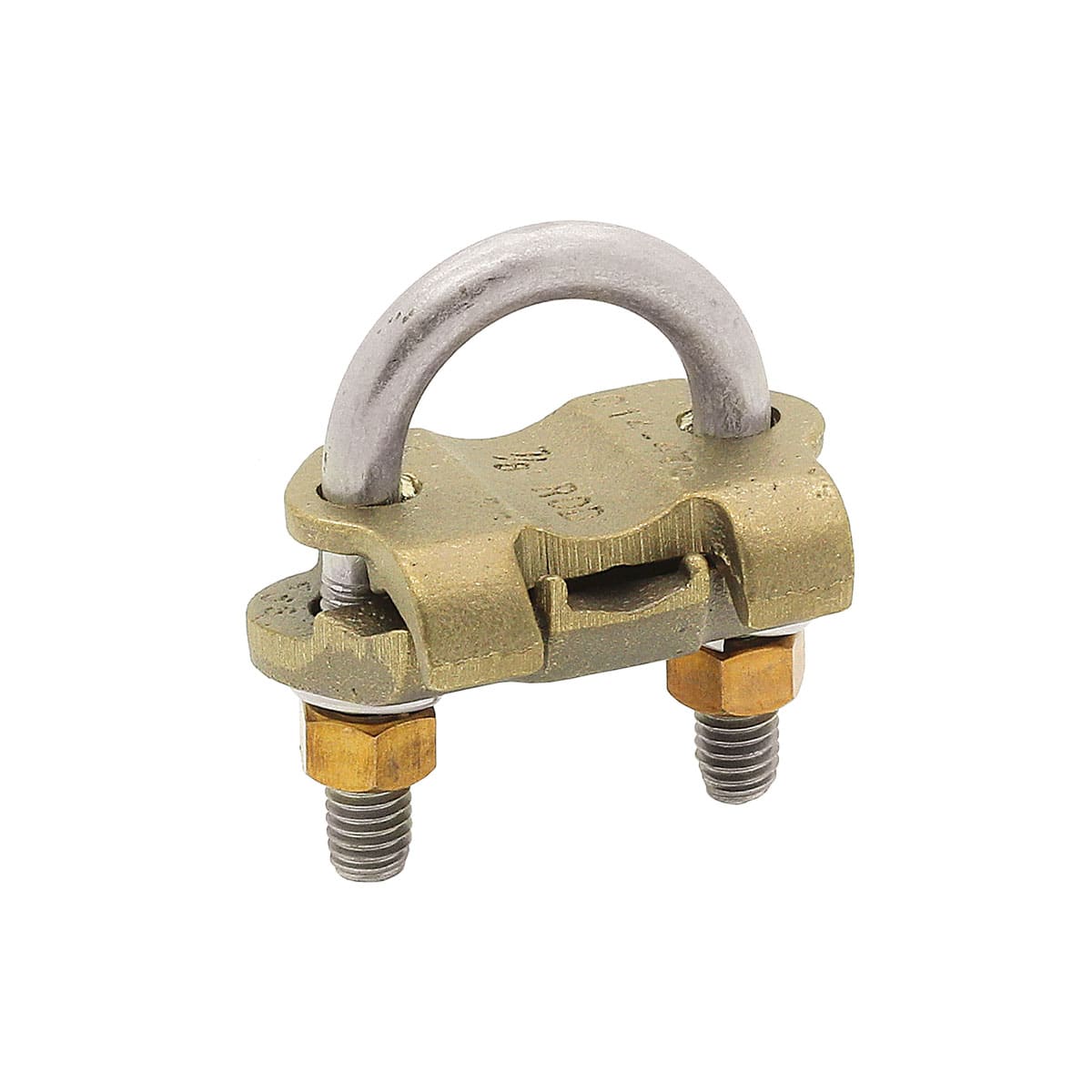

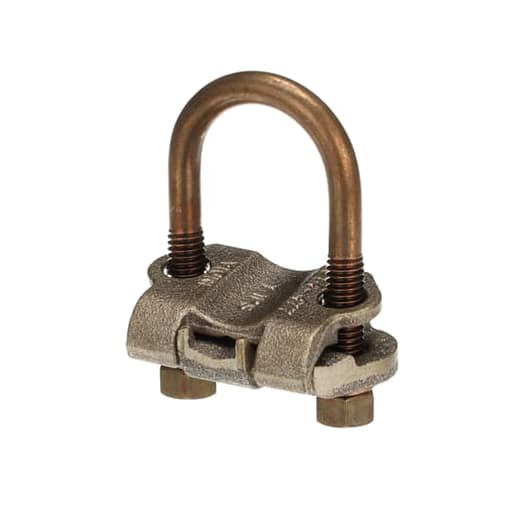

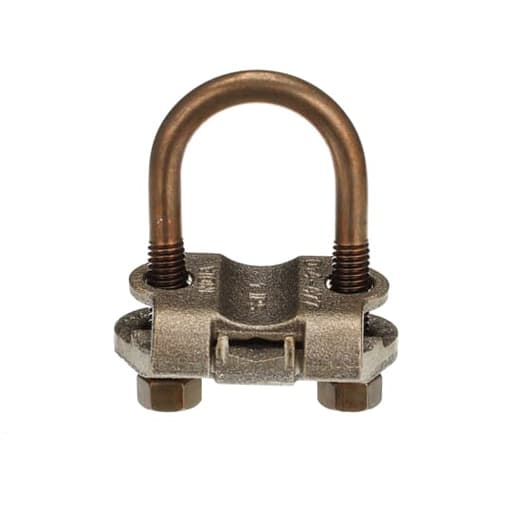

Thomas & Betts Co - Blackburn GUV11821 U Bolt Ground Clamp
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786803576
Applications - Ground Rod
Catalog Number - GUV11821
Conductor Material - Copper
Conductor Size - 4-2/0 AWG
Packaging
1 ea
EAN
00783786803576
Part #
135015
Catalog #
GUV11821
Commercial reference
GUV11821
12-Digit UPC:
783786803576
Applications:
Ground Rod
Catalog Number:
GUV11821
Conductor Material:
Copper
Conductor Size:
4-2/0 AWG
ERP_productname:
BLKB GUV11821 U BOLT GROUND CLAMP
Family Brand Name:
ABB
Length:
3-15/16 Inch
Material:
Copper
Sub Brand:
Blackburn®
Type:
U-Bolt
SoneparProductId:
SKU_US_59131977
U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0 AWG, Rod Size 1-1/8 - 1-1/4 Inches, IPS Pipe Size Max 1 Inch, Length 3-5/16 Inches, Width 2-3/4 Inches, Depth 1-9/16 Inches Features: Excellent for connecting copper or copper-clad steel grounding conductor to ground rod or pipe. Specially designed spacer provides proper alignment between cable and elctrode and affords more positive contact area.; All components cast or forged from copper alloy. - Notes: For tin plating add suffix P to catalog number. UL does not list tin-plated bronze grounding devices.
