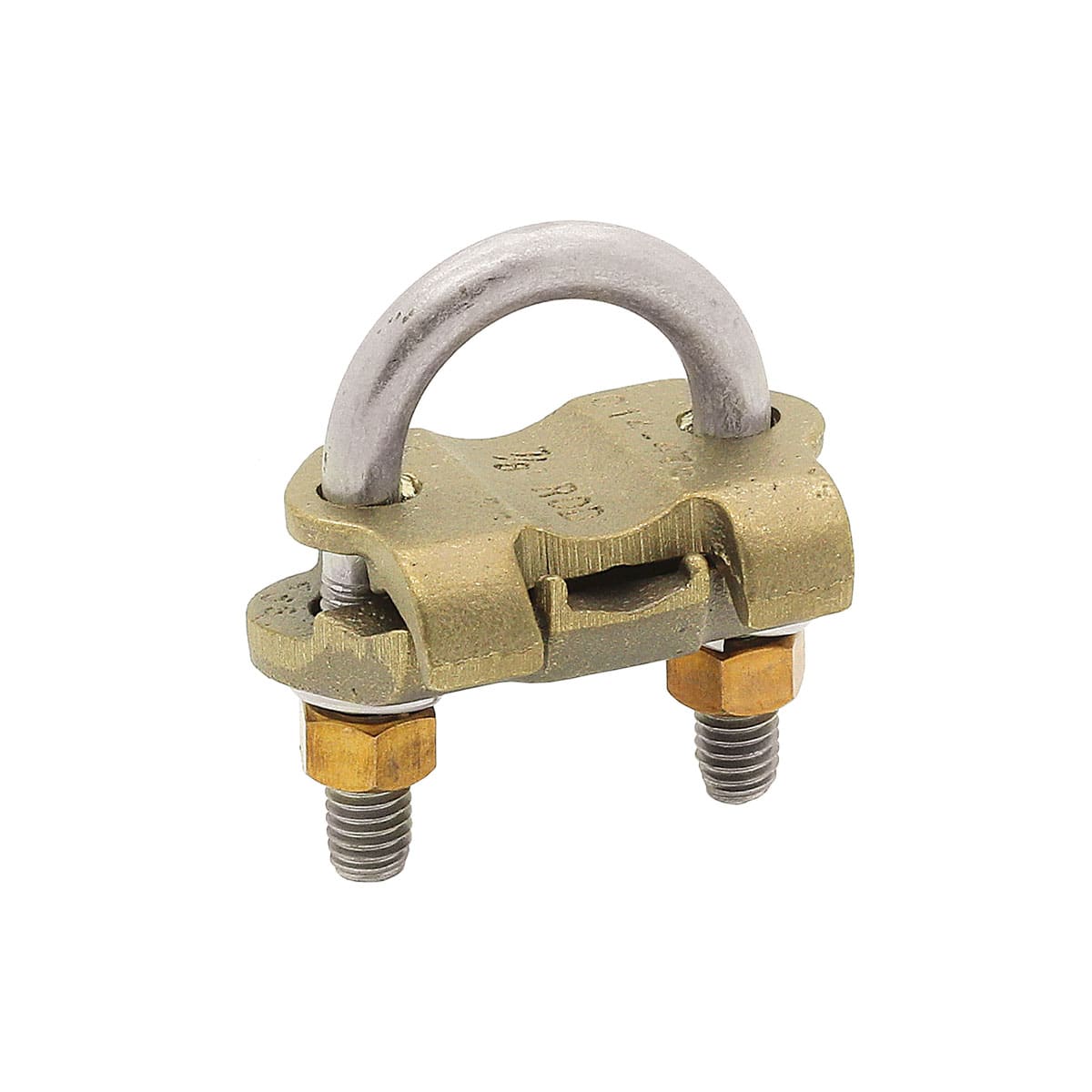

Thomas & Betts Co - Blackburn GUV21221 U Bolt Ground Clamp
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786803675
Applications - For Ground Rod
Catalog Number - GUV21221
Conductor Material - Copper
Conductor Size - 4-2/0 AWG
Packaging
1 ea
EAN
00783786803675
Part #
251860
Catalog #
GUV21221
Commercial reference
GUV21221
12-Digit UPC:
783786803675
Applications:
For Ground Rod
Catalog Number:
GUV21221
Conductor Material:
Copper
Conductor Size:
4-2/0 AWG
ERP_productname:
CARB GUV21221 U BOLT GRD CLAMP RANGE 2/0-4
Family Brand Name:
ABB
Length:
4-15/16 Inch
Material:
Copper
Sub Brand:
Blackburn®
Type:
U-Bolt
SoneparProductId:
SKU_US_58941614

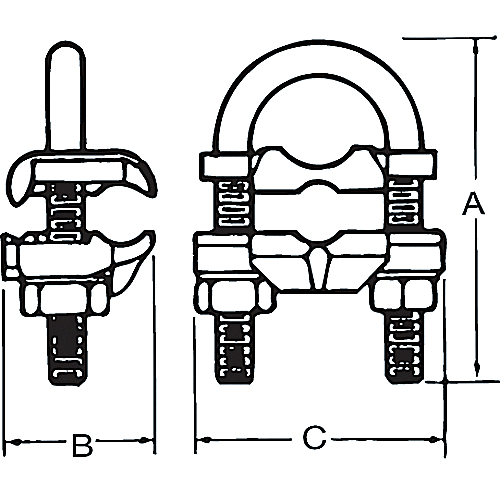

U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 4 - 2/0 AWG, Rod Size 2-1/2 to 2-7/8 Inches, IPS Pipe Size Max 2-1/2 Inches, Length 4-15/16 Inches, Width 4-3/16 Inches, Depth 1-9/16 Inches Features: All components cast or forged from copper alloy.; Excellent for connecting copper or copper-clad steel grounding conductor to ground rod or pipe. Specially designed spacer provides proper alignment between cable and elctrode and affords more positive contact area. - Notes: For tin plating add suffix P to catalog number. UL does not list tin-plated bronze grounding devices.
