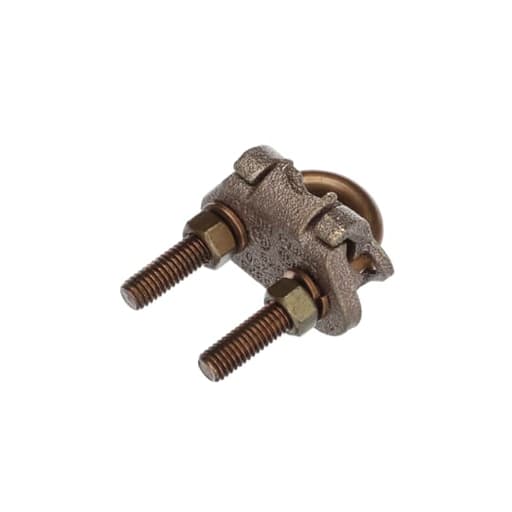

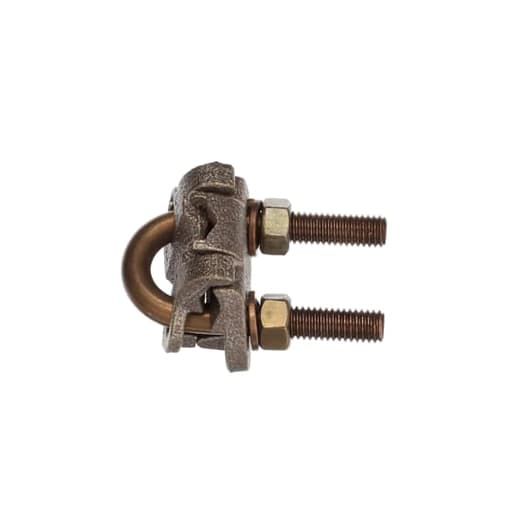

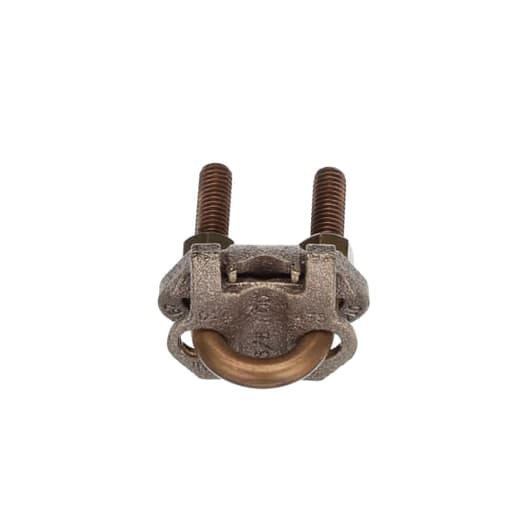

Thomas & Betts Co - Blackburn GUV5825 U Bolt Ground Clamp
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786803521
Catalog Number - GUV5825
Conductor Material - Copper
Conductor Size - 2/0 AWG-250 kcmil
ERP_productname - BLKB GUV5825 U-BOLT GROUND CLAMP COND 250-2/0
Packaging
1 ea
EAN
05415022348842
Part #
104560
Catalog #
GUV5825
Commercial reference
GUV5825
12-Digit UPC:
783786803521
Catalog Number:
GUV5825
Conductor Material:
Copper
Conductor Size:
2/0 AWG-250 kcmil
ERP_productname:
BLKB GUV5825 U-BOLT GROUND CLAMP COND 250-2/0
Family Brand Name:
ABB
Length:
2-13/16 Inch
Material:
Copper
Sub Brand:
Blackburn®
Type:
Non Insulated, U-Bolt
SoneparProductId:
SKU_US_57902830
U-Bolt Copper Ground Clamp, Stainless Steel U-Bolt, Wire Range 2/0 - 250 kcmil, Rod Size 5/8 - 3/4 Inch, IPS Pipe Size 3/8, Length 2-13/16 Inches, Width 2-1/4 Inches, Depth 1-9/16 Inches Features: All components cast or forged from copper alloy.; Excellent for connecting copper or copper-clad steel grounding conductor to ground rod or pipe. Specially designed spacer provides proper alignment between cable and elctrode and affords more positive contact area. - Notes: For tin plating add suffix P to catalog number. UL does not list tin-plated bronze grounding devices.
