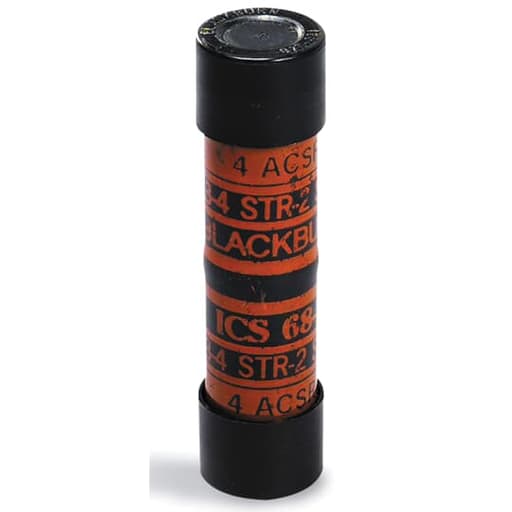

Thomas & Betts Co - Blackburn ICS61-1 Insulated Entrance Sleeve
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786102334
Applications - For Solid Cores and for Standard Conductor Splice
Catalog Number - ICS61-1
Color - Green
Conductor Size - 8-6 AWG
Packaging
500 ea
EAN
00783786102334
Part #
294435
Catalog #
ICS61-1
Commercial reference
ICS61-1
12-Digit UPC:
783786102334
Applications:
For Solid Cores and for Standard Conductor Splice
Catalog Number:
ICS61-1
Color:
Green
Conductor Size:
8-6 AWG
ERP_productname:
BLKB ICS61-1 INSUL.SERV. ENTRANCE SLEEVE
Family Brand Name:
ABB
Length:
2-25/32 Inch
Material:
Aluminum
Number of Conductors:
2
Size:
2-25/32 inch
Sub Brand:
Blackburn®
Tc Connection:
Compression
Type:
Standard Version, 1-Branch
SoneparProductId:
SKU_US_58940573
Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 8 Stranded, 6 Solid, Green, End B: 8 Stranded, 6 Solid, Green, Die: 5/8. For AL to AL and AL to CU Conductors. Features: Concave caps seal out dirt but are easily pierced when inserting conductor. Prefilled with Oxide Inhibitor.; Color-coded and marked for easy identification.; Use for combinations of aluminum-to-aluminum and aluminum-to-copper conductors. Can be used as a low-cost reducing sleeve.; Standards compliant. Meets ANSI C119.4 requirements. Connectors are RUS listed.
