Thomas & Betts Co - Blackburn ICS64-1 Insulated Service Entrance Sleeve
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786102365
Applications - Solid Cores, Stranded Conductors
Catalog Number - ICS64-1
Conductor Size - 6-4 AWG
ERP_productname - BLKB ICS64-1 INS COMP SLEEVE 6 OT 6
Packaging
1 ea
EAN
00783786102365
Part #
157237
Catalog #
ICS64-1
Commercial reference
ICS64-1
12-Digit UPC:
783786102365
Applications:
Solid Cores, Stranded Conductors
Catalog Number:
ICS64-1
Conductor Size:
6-4 AWG
ERP_productname:
BLKB ICS64-1 INS COMP SLEEVE 6 OT 6
Family Brand Name:
ABB
Length:
2-25/32 Inch
Material:
Aluminum
Number of Conductors:
2
Size:
2-25/32 inch
Sub Brand:
Blackburn®
Tc Connection:
Compression
Type:
Insulated, Standard
SoneparProductId:
SKU_US_58831259

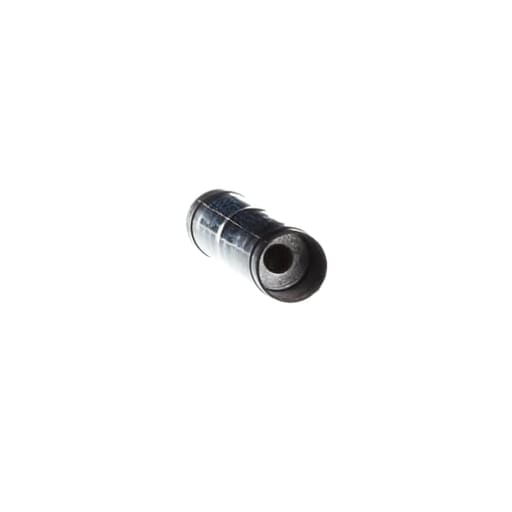

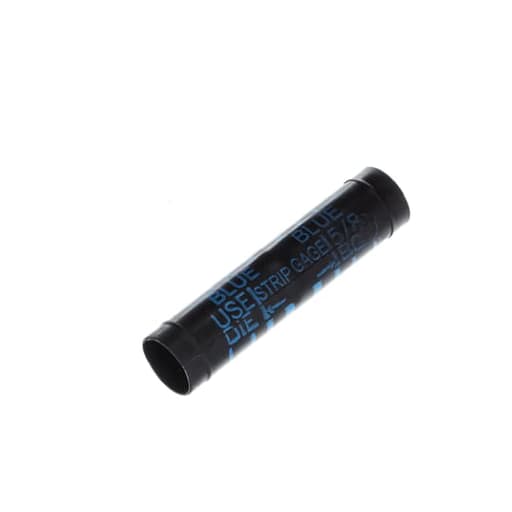

Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 6 ASCR, 6 Stranded, 4 Solid, Blue, End B: 6 ASCR, 6 Stranded, 4 Solid, Blue, Die: 5/8. For AL to AL and AL to CU Conductors. Features: Standards compliant. Meets ANSI C119.4 requirements. Connectors are RUS listed.; Use for combinations of aluminum-to-aluminum and aluminum-to-copper conductors. Can be used as a low-cost reducing sleeve.; Color-coded and marked for easy identification.; Concave caps seal out dirt but are easily pierced when inserting conductor. Prefilled with Oxide Inhibitor.
