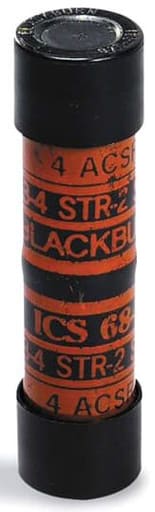

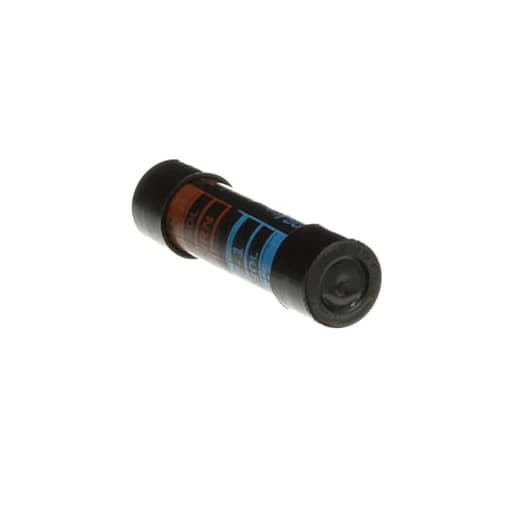

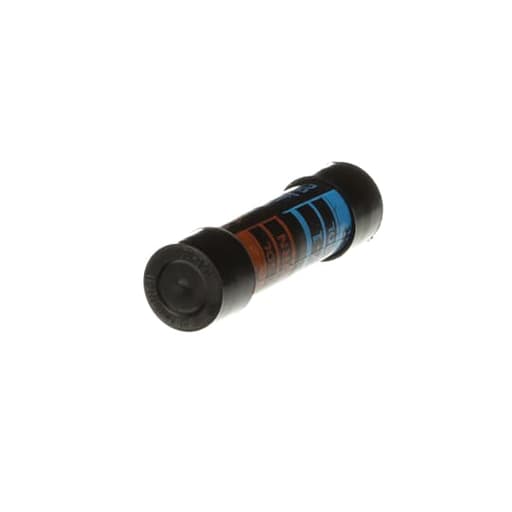

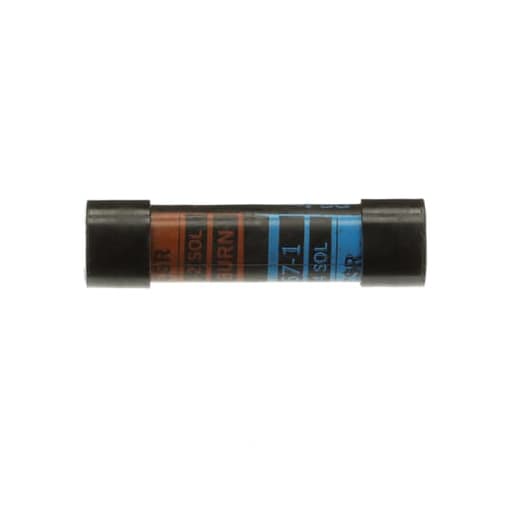

Thomas & Betts Co - Blackburn ICS67-1 Insulated Service Entrance Sleeve

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783786102396

  • Applications - Aluminum-to-Aluminum or Aluminum-to-Copper Conductors, Round, Solid Core and Stranded Conductors

  • Catalog Number - ICS67-1

  • Conductor Size - 4 AWG ACSR (End A), 3-4 AWG Stranded, 2 AWG Solid (End B), 6 AWG ACSR, 6 AWG Stranded, 4 AWG Solid

  • ERP_productname - BLKB ICS67-1 INS COMP SLEEVE 4 TO 6

Packaging

  • 1 ea

EAN

05415022233841

Part #

157244

Catalog #

ICS67-1

Commercial reference

ICS67-1

12-Digit UPC:

783786102396

Applications:

Aluminum-to-Aluminum or Aluminum-to-Copper Conductors, Round, Solid Core and Stranded Conductors

Catalog Number:

ICS67-1

Conductor Size:

4 AWG ACSR (End A), 3-4 AWG Stranded, 2 AWG Solid (End B), 6 AWG ACSR, 6 AWG Stranded, 4 AWG Solid

ERP_productname:

BLKB ICS67-1 INS COMP SLEEVE 4 TO 6

Family Brand Name:

ABB

Length:

2-25/32 Inch

Material:

Aluminum

Number of Conductors:

2

Size:

2-25/32 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Standard

Voltage:

600 Volt

SoneparProductId:

SKU_US_57948584

Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 4 ASCR, 3-4 Stranded, 2 Solid, Orange, End B: 6 ASCR, 6 Stranded, 4 Solid, Blue, Die: 5/8. For AL to AL and AL to CU Conductors. Additional Information: Type Insulated; Applicable Standard ANSI C119.4 - Features: Constructed from Aluminum for High Conductivity; Solid Center Barriers and Large Chamfers for Easy Cable Insertion; Tough Stabilized Nylon Sleeves Resist Installing-Tool Pressure and Provide Reliable 600 V Insulation; Pre-Filled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture; All Splices are Color Coded and Marked with Strip Lengths, Installation Die Codes and Compression Locations, Providing Easy Identification for Easy Installation; Splices have Colored End Caps to Make Identification Easy; Comply with ANSI C119.4 When Properly Installed on Aluminum-To-Aluminum or Aluminum-To-Copper Conductors
