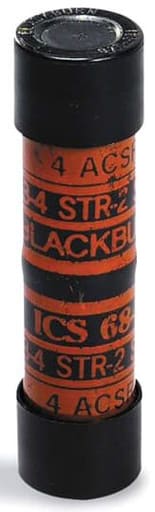

Thomas & Betts Co - Blackburn ICS71-1 Insulated Service Entrance Sleeve

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783786102433

  • Applications - For Solid Cores and for Standard Conductor Splice

  • Catalog Number - ICS71-1

  • Conductor Size - 33.6 mm., 2-1 AWG, 2 AWG ACSR, 2-1 AWG Stranded (End A), 6 AWG ACSR, 6 AWG Stranded, 4 AWG Solid (End B)

  • ERP_productname - BLKB ICS71-1 INS COMP SLEEVE 2 TO 6

Packaging

  • 1 ea

EAN

00783786102433

Part #

157283

Catalog #

ICS71-1

Commercial reference

ICS71-1

12-Digit UPC:

783786102433

Applications:

For Solid Cores and for Standard Conductor Splice

Catalog Number:

ICS71-1

Conductor Size:

33.6 mm., 2-1 AWG, 2 AWG ACSR, 2-1 AWG Stranded (End A), 6 AWG ACSR, 6 AWG Stranded, 4 AWG Solid (End B)

ERP_productname:

BLKB ICS71-1 INS COMP SLEEVE 2 TO 6

Family Brand Name:

ABB

Length:

2-25/32 Inch

Material:

Aluminum

Number of Conductors:

2

Size:

2-25/32 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Standard Version, 1-Branch

Voltage:

600 Volt

SoneparProductId:

SKU_US_58831610

Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 2 ASCR, 1-2 Stranded, Red, End B: 6 ASCR, 6 Stranded, 4 Solid, Blue, Die: 5/8. For AL to AL and AL to CU Conductors. Features: Constructed from Aluminum for High Conductivity; Solid Center Barriers and Large Chamfers for Easy Cable Insertion; Tough Stabilized Nylon Sleeves Resist Installing-Tool Pressure and Provide Reliable 600 V Insulation; Pre-Filled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture; All Splices are Color Coded and Marked with Strip Lengths, Installation Die Codes and Compression Locations, Providing Easy Identification for Easy Installation; Splices have Colored End Caps to Make Identification Easy; Comply with ANSI C119.4 When Properly Installed on Aluminum-To-Aluminum or Aluminum-To-Copper Conductors - Additional Information: Type Insulated; Applicable Standard ANSI C119.4
