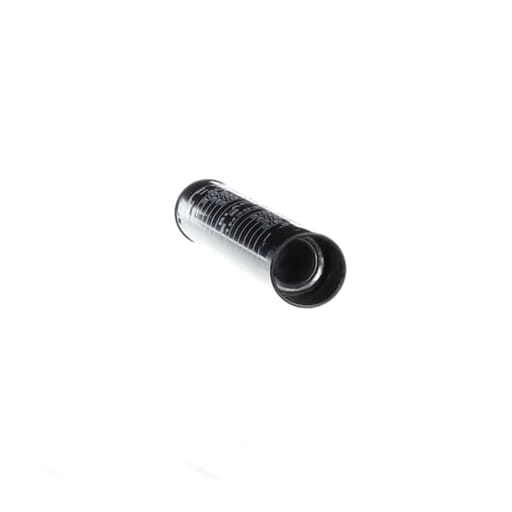

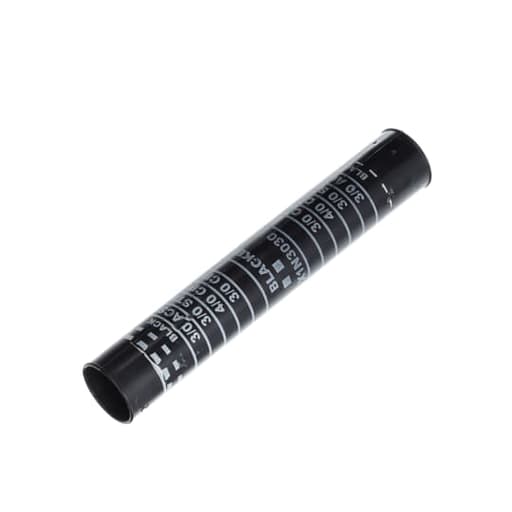

Thomas & Betts Co - Blackburn IKL58 Insulated Service Entry Sleeve

Essential specifications

12-Digit UPC - 783786050321
Applications - For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors, Stranded Conductors
Catalog Number - IKL58
Color - Black
Conductor Size - 3/0 AWG

Packaging

1 ea

EAN

00783786050321

Part #

137423

Catalog #

IKL58

Commercial reference

IKL58

12-Digit UPC:

783786050321

Applications:

For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors, Stranded Conductors

Catalog Number:

IKL58

Color:

Black

Conductor Size:

3/0 AWG

ERP_productname:

BLKB IKL58 INSUL.SERVICE ENTRY SLEEVE

Family Brand Name:

ABB

Length:

5-1/2 Inch

Material:

Aluminum

Number of Conductors:

Size:

5-1/2 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Standard Version

SoneparProductId:

SKU_US_58830824

Aluminum 4 inch Service Entrance Compression Splice for Wire Range - Black End: 3/0 ASCR, 3/0 STR, 4/0 CPT, 3/0 CPR. Black End: 3/0 ASCR, 3/0 STR, 4/0 CPT, 3/0 CPR. Installing Dies: TX 249 840 (EEI 11A). Compound and Capped. includes 5-7/16 inch Sleeve Features: Use for combinations of aluminum-to-aluminum and aluminum-to-copper conductors. Can be used as a low-cost reducing sleeve.; Color-coded and marked for easy identification.; Concave caps seal out dirt but are easily pierced when inserting conductor. Prefilled with Oxide Inhibitor.; Standards compliant. Meets ANSI C119.4 requirements. Connectors are RUS listed.
