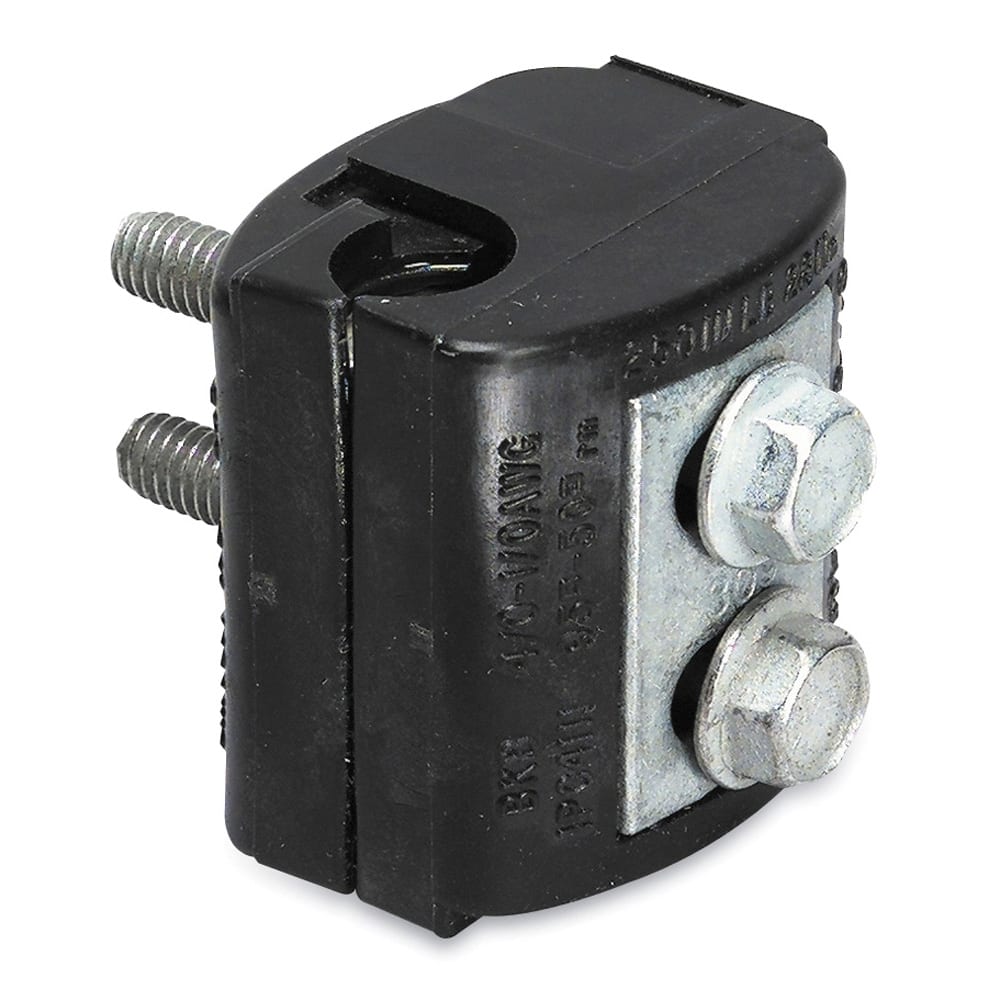

Thomas & Betts Co - Blackburn IPC5041 Insulated Piercing Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783786331130

  • Applications - For Copper to Copper, Copper to Aluminum and Aluminum to Aluminum Applications

  • Catalog Number - IPC5041

  • Color - Black

  • Conductor Size - 350 - 500 kcmil Main/Primary, 4/0-4 AWG Tap/Secondary

Packaging

  • 1 ea

EAN

05415022505764

Part #

157480

Catalog #

IPC5041

Commercial reference

IPC5041

12-Digit UPC:

783786331130

Applications:

For Copper to Copper, Copper to Aluminum and Aluminum to Aluminum Applications

Catalog Number:

IPC5041

Color:

Black

Conductor Size:

350 - 500 kcmil Main/Primary, 4/0-4 AWG Tap/Secondary

ERP_productname:

BLKB IPC5041 500 TO 4/0 AL9CU TAP

Family Brand Name:

Thomas & Betts (T&B)

Number of Ports:

1

Sub Brand:

Blackburn®

Type:

Insulated

Voltage:

600 Volt

SoneparProductId:

SKU_US_58830744

Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 500-350 AWG, 240-185 MM sq., Tap: 4/0-4 AWG, 90-25 MM sq. Features: Self-insulated for hot line applications. Six sizes cover range from #10 to 500 kcmil.; For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector.
