Thomas & Betts Co - Blackburn KL45-1 Compression Sleeve

Essential specifications

12-Digit UPC - 783786050024
Applications - For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors
Catalog Number - KL45-1
ERP_productname - BLKB KL45-1 AL SERVENTR SPLICE A:2/0 B:1-2 3.5
Family Brand Name - Blackburn

Packaging

1 ea

EAN

00783786050024

Part #

168443

Catalog #

KL45-1

Commercial reference

KL45-1

12-Digit UPC:

783786050024

Applications:

For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors

Catalog Number:

KL45-1

ERP_productname:

BLKB KL45-1 AL SERVENTR SPLICE A:2/0 B:1-2 3.5

Family Brand Name:

Blackburn

Length:

3 Inch

Material:

Aluminum

Number of Conductors:

Size:

3-1/2 Inch

Tc Connection:

Compression

Type:

Compression Splice Service Entrance

SoneparProductId:

SKU_US_58972798

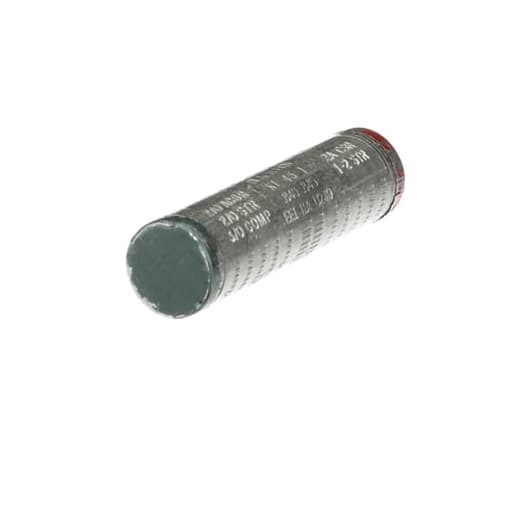

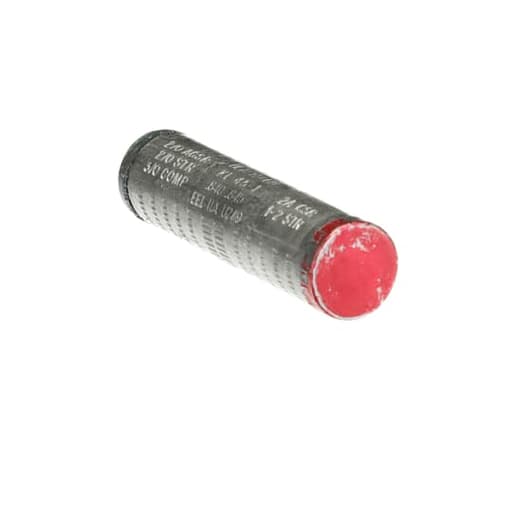

Aluminum 3-1/2 Inch Service Entrance Compression Splice for Wire Range - End A: 2/0 ASCR, 2/0 Str., 3/0 Str. Compact, Red, End B: 2 ASCR, 1-2 Str., 1 Str. Compact, Red, Die: 840. For AL to AL and AL to CU Conductors. Features: Color-coded and marked for easy identification.; Standards compliant. Meets ANSI C119.4 requirements.; Use for combinations of aluminum-to-aluminum and aluminum-to-copper conductors. Can be used as a low-cost reducing sleeve.; Center stop to ensure proper conductor positioning.
