Thomas & Betts Co - Blackburn L250H Terminal Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786130085
Applications - For Copper Conductors
Catalog Number - L250H
Conductor Size - 6 AWG Stranded - 250 kcmil Main/Primary
ERP_productname - BLKB L250H 6-250 CU SCR LUG
Packaging
1 ea
EAN
05414363153948
Part #
187042
Catalog #
L250H
Commercial reference
L250H
12-Digit UPC:
783786130085
Applications:
For Copper Conductors
Catalog Number:
L250H
Conductor Size:
6 AWG Stranded - 250 kcmil Main/Primary
ERP_productname:
BLKB L250H 6-250 CU SCR LUG
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Tin Plated
Heights:
1-1/16 Inch
Length:
1-61/64 Inch
Material:
Copper
Number of Conductors:
1
Sub Brand:
Blackburn®
Type:
Type L
Widths:
15/16 in
SoneparProductId:
SKU_US_58830097

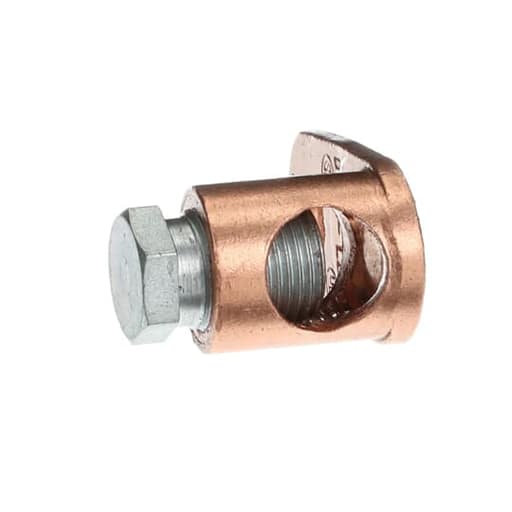

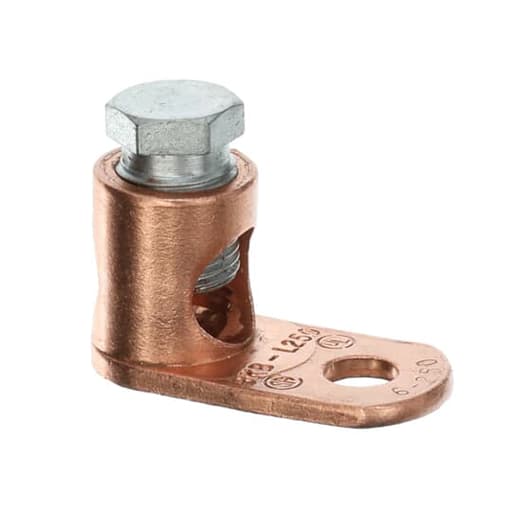

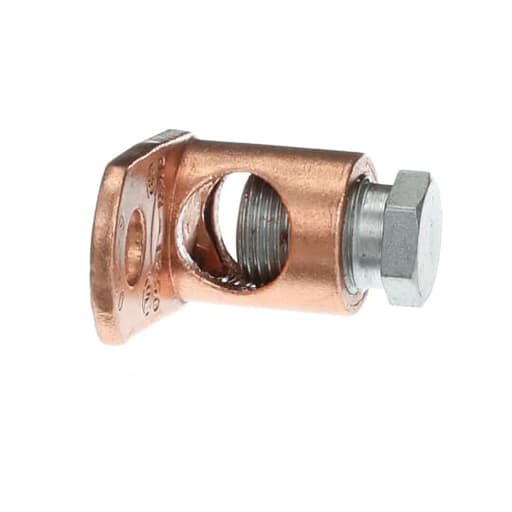

Type L - Copper Single Conductor, One-Hole Mount, Hex, Allen Head Screws, Conductor Range 6 Str-250 kcmil, Length 1-61/64 Inches, Width 15/16 Inch, Height 1-1/16 Inches Features: Cold forged from pure electrolytic copper with 99 percent conductivity. - Notes: UL 486A tested.; Hex screw.
