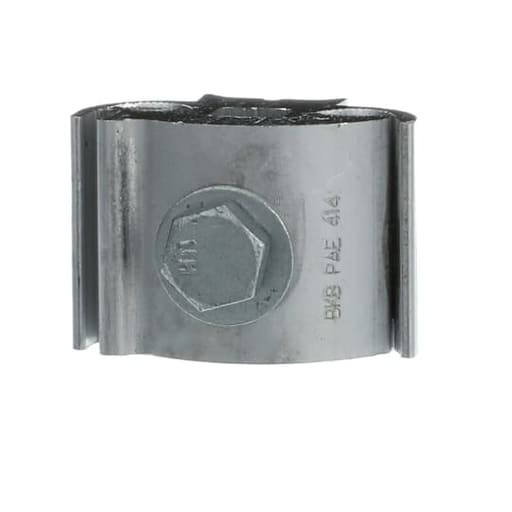

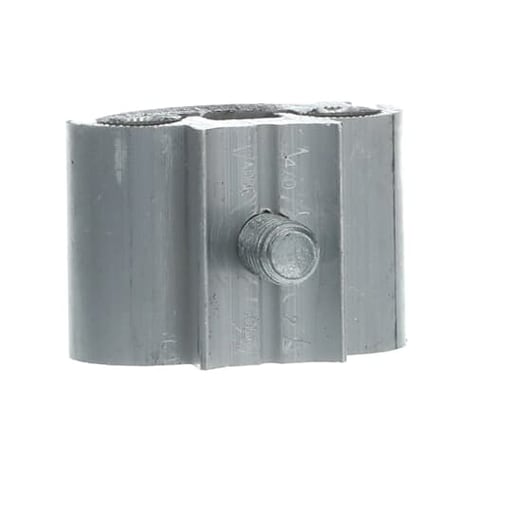

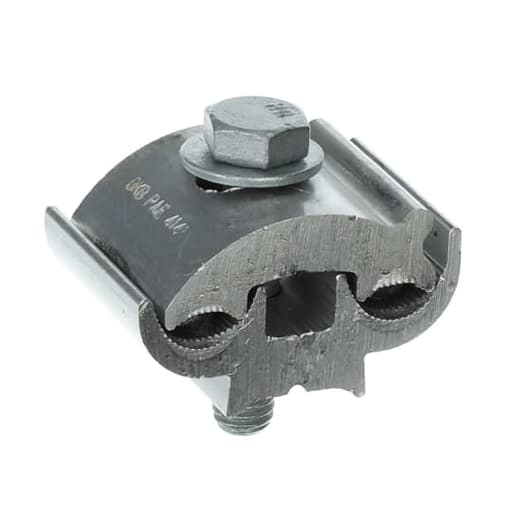

Thomas & Betts Co - Blackburn PAE4141-9 4/0 ACSR Main Parallel Groove Clamp
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786330317
Applications - Securing Conductors
Catalog Number - PAE4141-9
ERP_productname - CARB PAE4141-9 AL PARAGRV CLAMP EXTRUDED 4/0-2
Family Brand Name - Thomas & Betts (T&B)
Packaging
1 ea
EAN
05415022349139
Part #
272668
Catalog #
PAE4141-9
Commercial reference
PAE4141-9
12-Digit UPC:
783786330317
Applications:
Securing Conductors
Catalog Number:
PAE4141-9
ERP_productname:
CARB PAE4141-9 AL PARAGRV CLAMP EXTRUDED 4/0-2
Family Brand Name:
Thomas & Betts (T&B)
Material:
Aluminum
Number of Conductors:
2
Size:
2 in
Sub Brand:
Blackburn®
Tc Connection:
Bolted
Type:
Bolted
SoneparProductId:
SKU_US_58943217
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 4/0 ACSR-2 Solid 4-6 AR Tap: 4/0 ACSR-2 Solid, 4-6 AR Features: Standard PAE clamp is supplied with Contax (-9) and galvanized steel hardware.; For use on aluminum to aluminum or aluminum to copper connections with oxide inhibitor. Can be installed with live line tools. - Notes: RUS listed.; Tin plating (-P) or wax dip (-6) must be specified for without oxide inhibitor-filled connectors.; Options: 7 Aluminum hardware, P Tin plating, 6 Wax dip for oxide protection.
