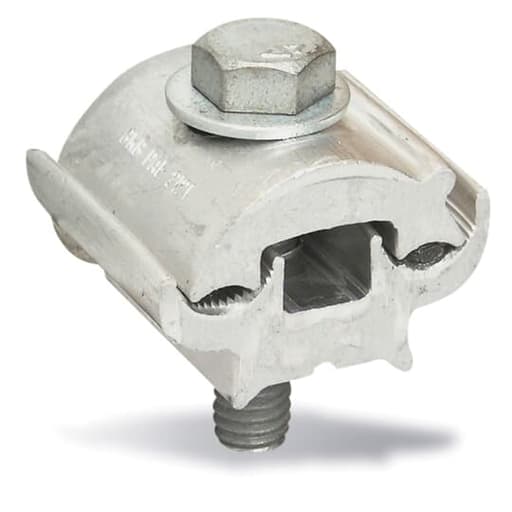

Thomas & Betts Co - Blackburn PAE9939-9 Extruded Parallel Groove Clamp
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786330379
Applications - Securing Conductors
Catalog Number - PAE9939-9
ERP_productname - BLKB PAE9939-9 AL PARAGRV CLAMP EXTRUDED 1000-397
Family Brand Name - ABB
Packaging
1 ea
EAN
00783786330379
Part #
235265
Catalog #
PAE9939-9
Commercial reference
PAE9939-9
12-Digit UPC:
783786330379
Applications:
Securing Conductors
Catalog Number:
PAE9939-9
ERP_productname:
BLKB PAE9939-9 AL PARAGRV CLAMP EXTRUDED 1000-397
Family Brand Name:
ABB
Material:
Aluminum
Number of Conductors:
2
Size:

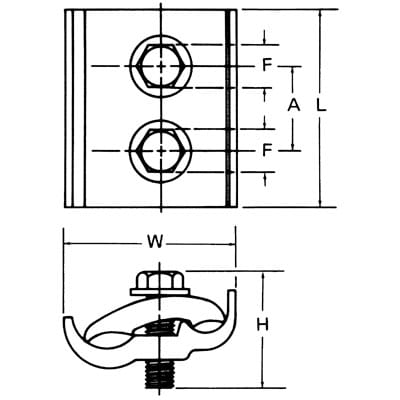

Height 2-13/16 X Length 3-1/2 X Width 3-7/64 inch, Bolt 1/2 inch
Sub Brand:
Blackburn®
Tc Connection:
Bolted
Type:
Extruded
SoneparProductId:
SKU_US_58832032
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 1000 kcmil-397.5, ACSR 336.4-2/0 AR Tap: 397.5 ACSR-3/0 Stranded, 2/0-6 AR Features: For use on aluminum to aluminum or aluminum to copper connections with oxide inhibitor. Can be installed with live line tools.; Standard PAE clamp is supplied with Contax (-9) and galvanized steel hardware. - Notes: Tin plating (-P) or wax dip (-6) must be specified for without oxide inhibitor-filled connectors.; Options: 7 Aluminum hardware, P Tin plating, 6 Wax dip for oxide protection.
