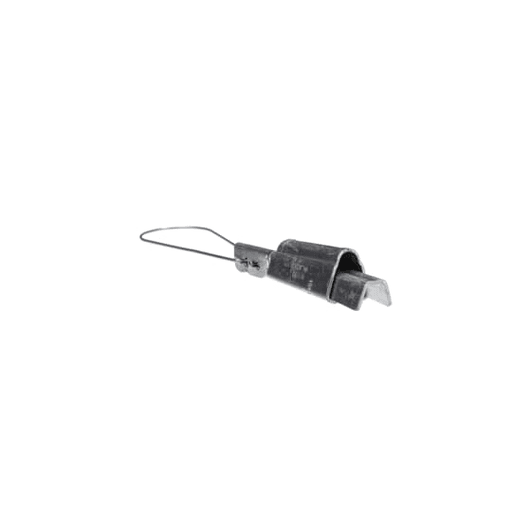

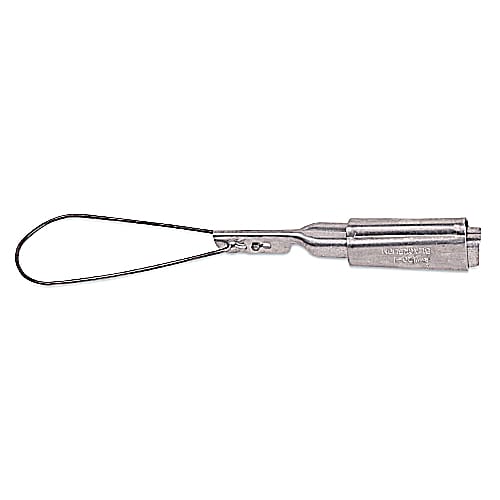

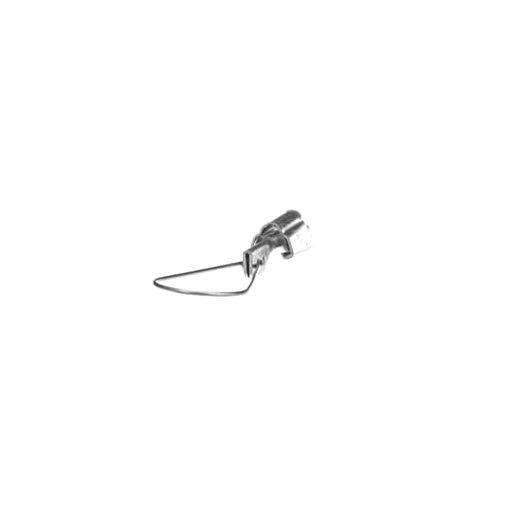

Thomas & Betts Co - Blackburn W40-1 Aluminum Wedge Clamp
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786332045
Applications - For Dead-End Self-Supporting Drop Wire
Catalog Number - W40-1
ERP_productname - BLKB W40-1 4/0 AL WEDGE CLAMP
Family Brand Name - ABB
Packaging
1 ea
EAN
00783786332045
Part #
158982
Catalog #
W40-1
Commercial reference
W40-1
12-Digit UPC:
783786332045
Applications:
For Dead-End Self-Supporting Drop Wire
Catalog Number:
W40-1
ERP_productname:
BLKB W40-1 4/0 AL WEDGE CLAMP
Family Brand Name:
ABB
Finish:
Bare
Length:
12-3/4 Inch
Material:
Aluminum
Mounting Type:
Yes
Number of Conductors:
1
Size:
12-3/4 in
Sub Brand:
Blackburn®
Tc Connection:
Tension
Type:
Non Insulated
Voltage:
35 kV
SoneparProductId:
SKU_US_57892031
Aluminum Service Entrance Wedge Clamp and Slider for Wire Range: 4/0-2/0 ASCR, 4/0-2/0 AAAC, 4/0 Str.-2/0 Str. , Color Code Red Features: Versatile use. Flexible and rigid bails grip ACSR, AAC and AAAC conductors.; Drop wire may be cut to exact length to adjust drop wire sag. This also saves the conductor.; Can be attached to bare neutral at any point in the span. - Notes: W40 series clamps rated 850 lb. Ultimate tension for 1/0 ASCR, AL or AAAC.
