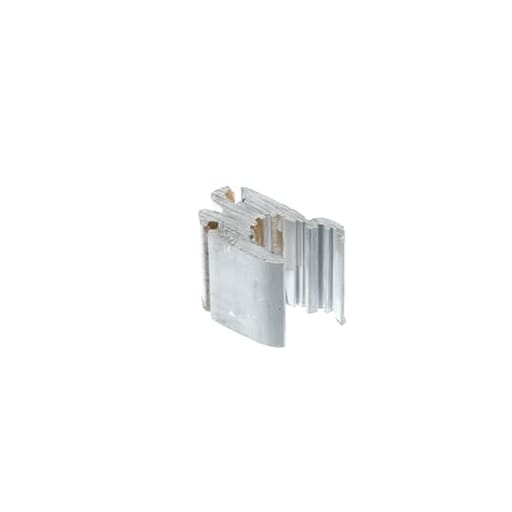

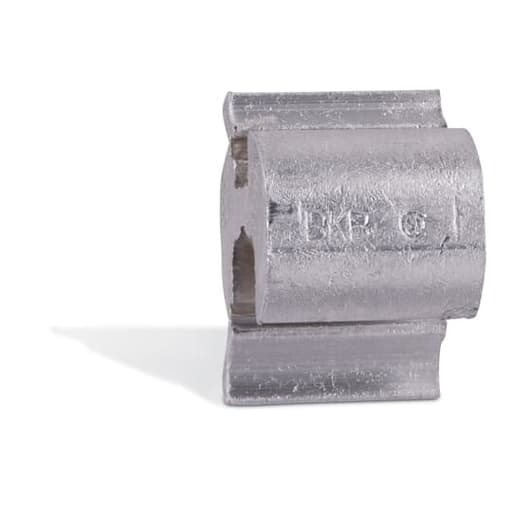

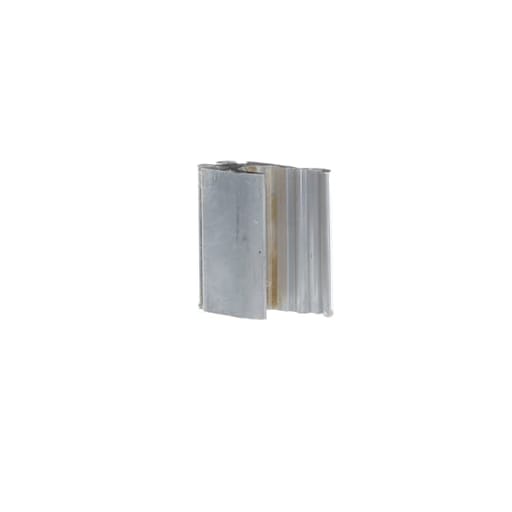

Thomas & Betts Co - Blackburn WR139 Compression Connector

Essential specifications

12-Digit UPC - 783786100361
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR139
ERP_productname - BLKB WR139 COMPR CONNECTOR
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786100361

Part #

158670

Catalog #

WR139

Commercial reference

WR139

12-Digit UPC:

783786100361

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR139

ERP_productname:

BLKB WR139 COMPR CONNECTOR

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-1/2 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-1/2 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 1/0-4 ACSR or 2/0-3 STR or 2/0-2 SOL AWG ; Tap A: 8-10 STR or 6-10 SOL AWG ; Tap B: 12-14 STR or 12-14 SOL AWG

SoneparProductId:

SKU_US_58099931

Aluminum Wide Range H-Type Compression Connector Main: 1/0 - 4 ACSR, 2/0 - 3 Str., 2/0 - 2 Sol. Tap: 8 -10 Str., 6 - 10 Sol., Groove C: 12 - 14 Str., 12 -14 Sol. Die: O Features: Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; Fold-in tabs provide positive tab interlock as tool closes.; RUS accepted and complies with ANSI C119.4; Enables excellent connector contact without distorting the conductor's shape. - Notes: Will accept standard conductors of the same size with a 3 percent reduction of compressed diameter.; Fig. 1
