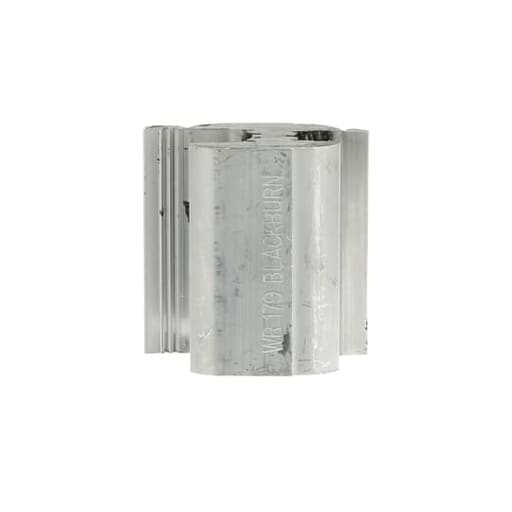

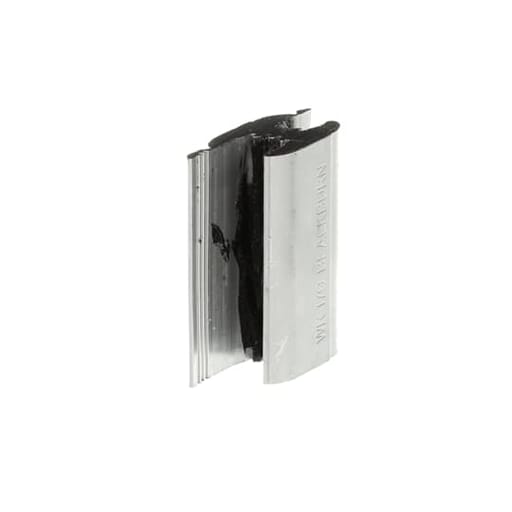

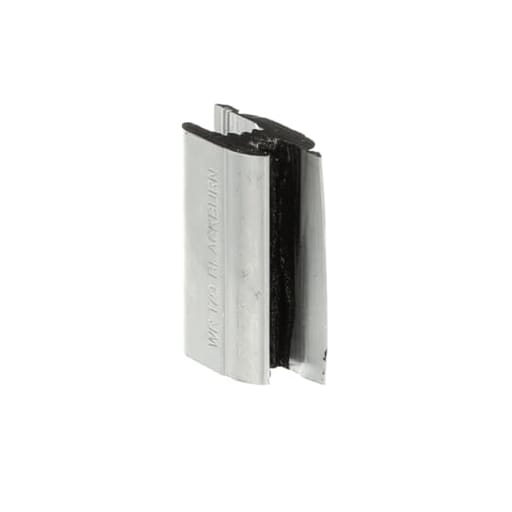

Thomas & Betts Co - Blackburn WR179 Compression Connector

Essential specifications

12-Digit UPC - 783786100026
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR179
ERP_productname - BLKB WR179 TAP CONNECTOR
Family Brand Name - ABB

Packaging

1 ea

EAN

00783786100026

Part #

158721

Catalog #

WR179

Commercial reference

WR179

12-Digit UPC:

783786100026

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR179

ERP_productname:

BLKB WR179 TAP CONNECTOR

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-7/8 Inch

Material:

Aluminum

Number of Conductors:

Size:

Length 1-7/8 inch

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 1/0-3 ACSR or 1/0-2 STR or 1/0-1 SOL AWG ; Tap: 4-6 ACSR or 3-6 STR or 2-6 SOL AWGp: 4-6 ACSR AWG ; 3-6 STR AWG ; 2-6 SOL AWG

SoneparProductId:

SKU_US_58102031

Aluminum Wide Range H-Type Compression Connector Main: 1/0-3 ACSR, 1/0-2 Str., 1/0-1 Sol., Tap: 4-6 ACSR, 3-6 Str., 2-6 Sol., Die: 0 Features: Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.; RUS accepted and complies with ANSI C119.4; Fold-in tabs provide positive tab interlock as tool closes.; Enables excellent connector contact without distorting the conductor's shape.
