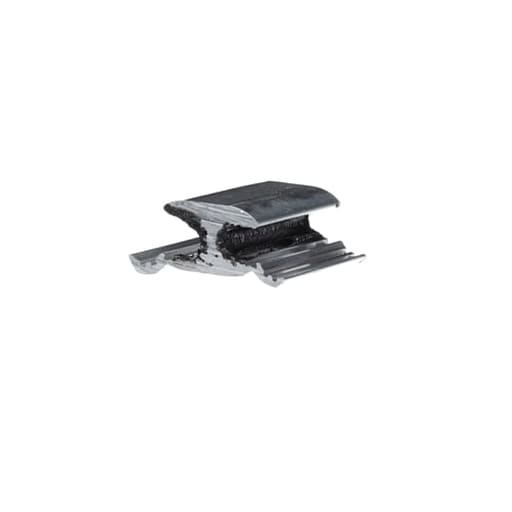

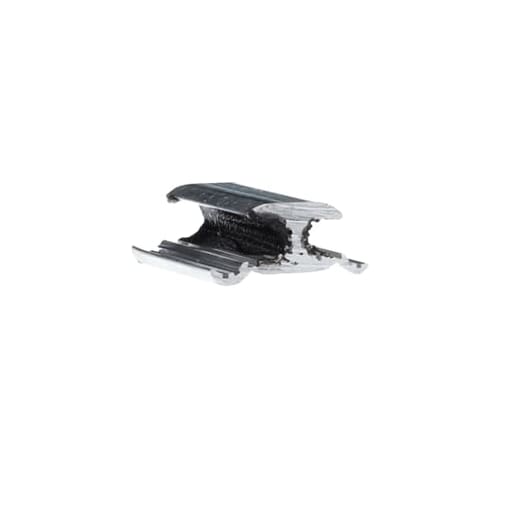

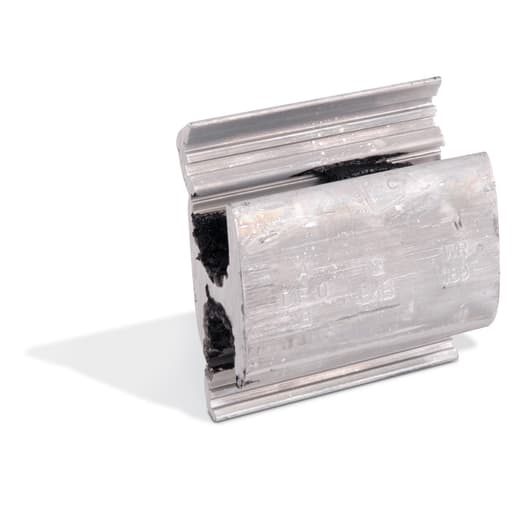

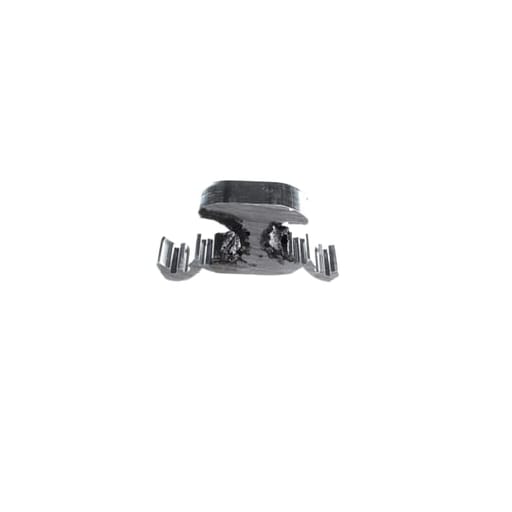

Thomas & Betts Co - Blackburn WR189 Compression Connector

Essential specifications

12-Digit UPC - 783786103027
Applications - For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Catalog Number - WR189
ERP_productname - BLKB WR189 O&D-DIE TAP CONNECTOR AL HTYPE COMP CONN 2/0-1/0ACSR 2-6
Family Brand Name - ABB

Packaging

250 ea

EAN

05415022349283

Part #

158745

Catalog #

WR189

Commercial reference

WR189

12-Digit UPC:

783786103027

Applications:

For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.

Catalog Number:

WR189

ERP_productname:

BLKB WR189 O&D-DIE TAP CONNECTOR AL HTYPE COMP CONN 2/0-1/0ACSR 2-6

Family Brand Name:

ABB

Finish:

Tin Plated

Length:

1-11/16 Inch

Material:

Aluminum

Number of Conductors:

Size:

1-11/16 in

Sub Brand:

Blackburn®

Tc Connection:

Compression

Type:

Wide-Range, Parallel, Short Sleeve

Wire Size:

Main: 1/0-3 ACSR or 2/0-2 STR or 3/0-1 SOL AWG ; Tap: 2-6 ACSR or 1-6 STR or 1/0-6 SOL AWG

SoneparProductId:

SKU_US_58027523

Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 2, Conductor Range Main ASCR 1/0, #1, #2, Stranded 2/0, 1/0, #1, #2, Solid 3/0, 2/0, 1/0, #1, #2 TAP ASCR #2, #4, #6, Stranded #1, #2, #3, #4, #6, Solid #2, #4, #6, Die O Features: Made of 1350 Aluminum Alloy for high strength and high conductivity; Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape; Standard Compression tools and dies install all sizes - no special tools needed; Fold-in tabs provide tab interlock as tool closes; Prefilled with oxide inhibitor held captive in the rib/connection area. - Applications: For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
